Removing Control Unit For Sun Blind
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
→ Switch off electrical loads before disconnecting or removing them.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work .
- Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position .
- Do not touch electric pins and plug contacts .

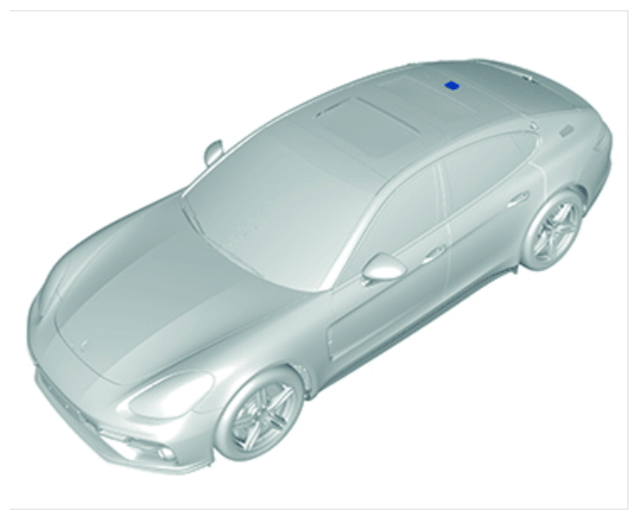

Installation position of control unit for sun blind

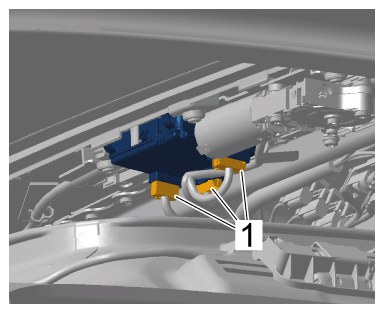

- Release and unplug electric plug connections -1-
.
Releasing and pulling off electric plug connections

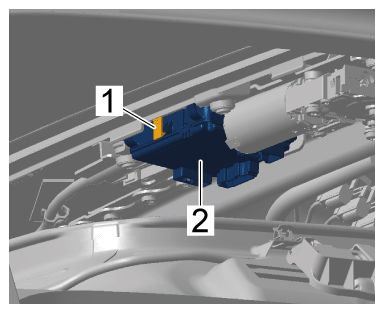

- Release locking lug -1- and unclip control unit for panoramic roof -2- .
Unclipping control unit for sun blind
