Replacing Front Roof Assembly Seal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

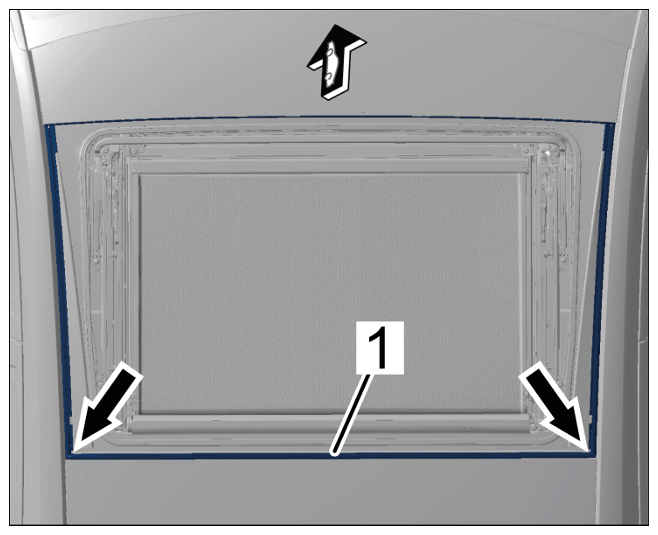

  1. Pull front roof assembly seal -1-  off the roof assembly all the way around, starting at the rear -arrows-  .
    G15864557Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing front roof assembly seal

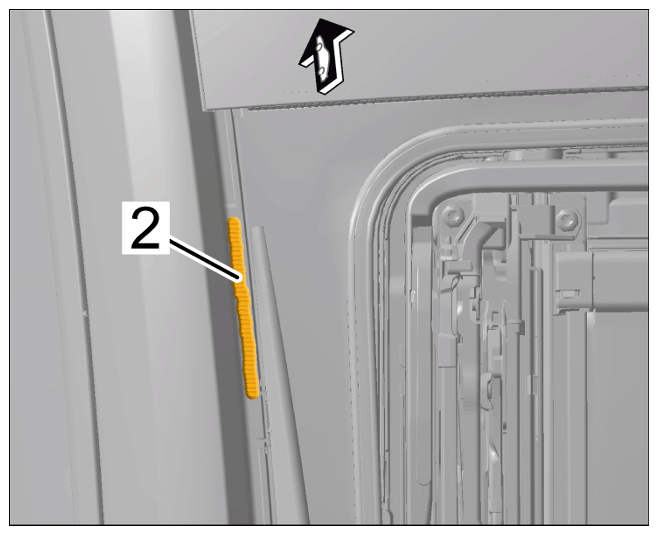

  2. Remove excess adhesive -2-  on the front roof assembly at the left and right.
    G15864558Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing adhesive

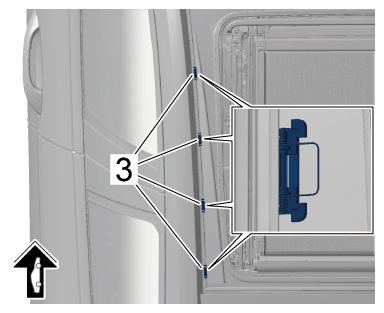

  3. Stick that the hinges on the acoustic covers -3-  are fitted securely at the left and right.
    G15864559Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Checking hinges on acoustic covers

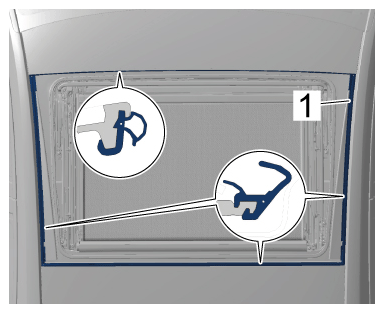

  4. Position front roof assembly seal -1-  on roof assembly, press it into the guides and then press it in further using an assembly wedge.
    G15864560Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing front roof assembly seal

    Information

    The seal must not be deformed after fitting.

  5. Check that front roof assembly seal is fitted correctly.
