Overview Of Water Drains

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

The following overview serves as a guide to the installation positions of the water drains on the sliding roof or convertible top and plenum panel. Add-on parts in the area are not shown for the sake of clarity.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

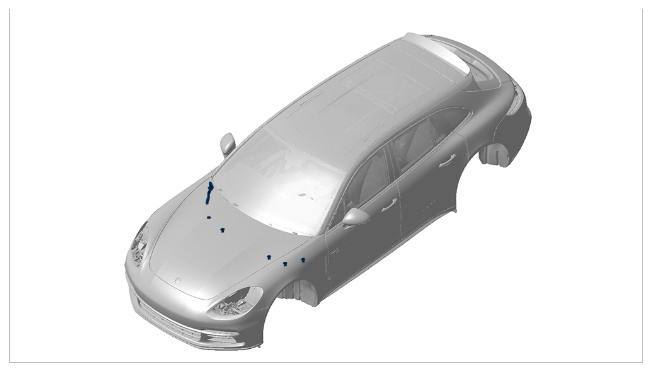

Overview of water drains

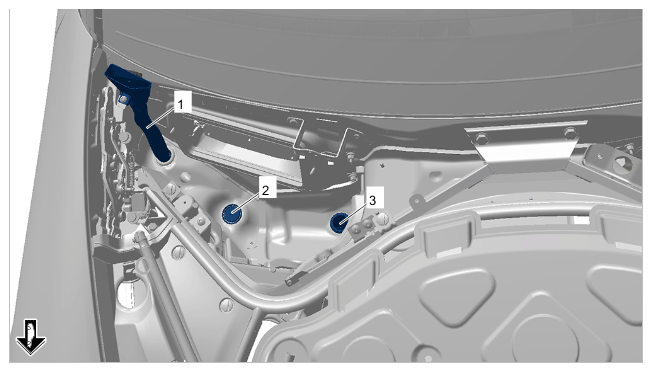

Fig 1: Plenum Panel Water Drain Component Location (Right)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plenum panel water drain (right)

1	Water drain
2	Dummy plug
3	Water drain valve

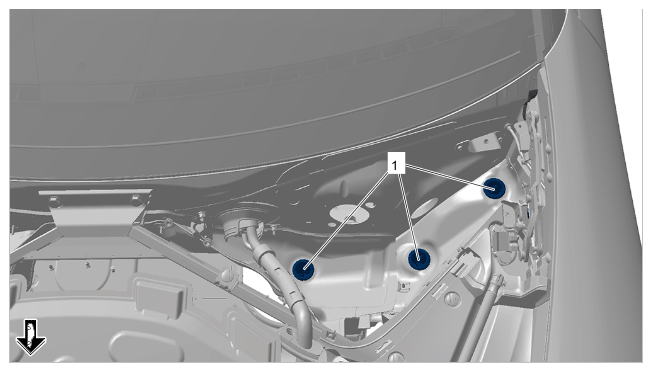

Fig 2: Plenum Panel Water Drain Component Location (Left)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Plenum panel water drain (left)

1	Water drain valve
