Preparing Sliding-Roof Panel For Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Bonding surfaces must be clean and free of grease.

Set cover down on the padded assembly base.
Remove adhesive residue and prime bonding surface -2- .
1. 2.1 Remove adhesive residue all the way around.
2. 2.2 Clean bonding surface -2- with isopropanol.
3. 2.3 In the bonding surface area -2- , apply primer > PRIMER 999.915.577.40 .
  Information

  Do not exceed the maximum processing time for the primer. Otherwise, primer will have to be applied again.

  > Processing time at 20°C 60 min
4. 2.4 Allow primer to dry off; it must be dust-dry before any adhesive is applied.

> Drying time 2 Minuten

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

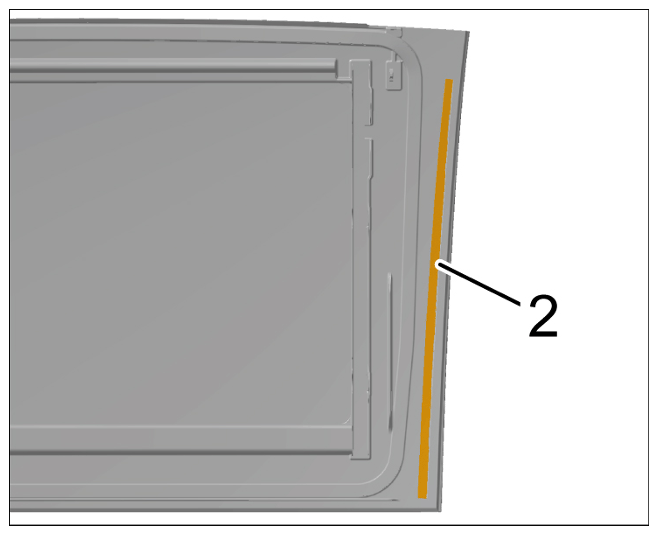

Cleaning and priming bonding surface
