Removing Front Panoramic Roof Glass Panel
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle windows removed and installed incorrectly
- Danger of cuts
- Risk of eye injuries
→ Wear personal protective gear.
→ Always shut off power supply when replacing cutting knife.
Information
- The procedure for removing car windows is described in
Information
The component cannot be removed without damaging it and must always be replaced.
- Open sliding roof.

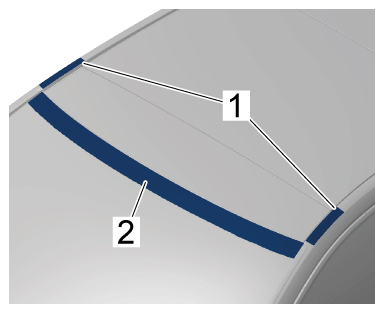

- Mask the roof pillar -1-
and windscreen -2-
with adhesive tape.
Masking roof pillar
Information
- Cut carefully. Do not damage the paintwork or windscreen .

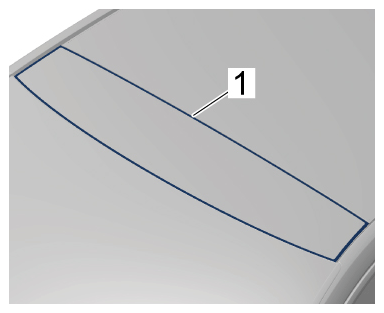

- Cut off the foam surround -1-
around the front panoramic roof glass panel using a cutter.
Foam surround
- Cut out front panoramic roof glass panel.
Information
- Cut carefully. Do not damage the paintwork or windscreen
.

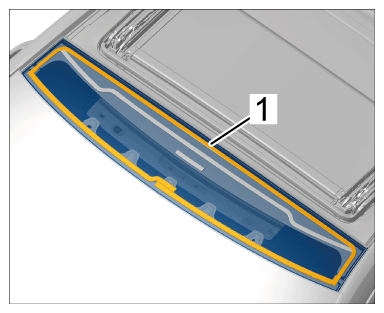

- 4.1 Cut outer adhesive bead -1-
all the way around using > V.A.G 1561B - Electric cutter
and angled blade.
Adhesive bead
Information
- Cut carefully. Do not damage the paintwork or windscreen .

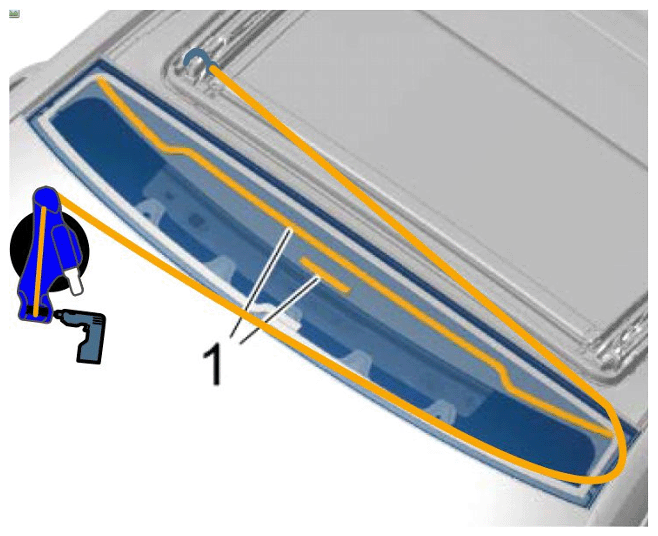

- 4.2 Cut half-way through inner adhesive bead -1-
using > VAS 861 001A - Window removal set
.
Inner adhesive bead

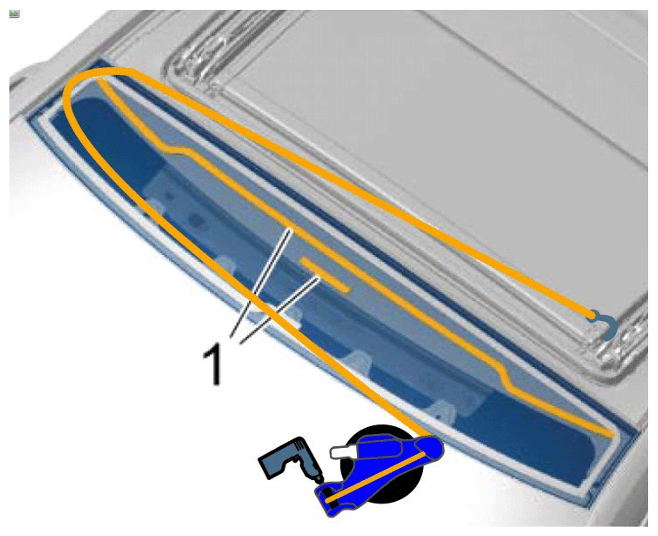

- 4.3 Cut through the second half of the inner adhesive bead -1- using > VAS 861 001A - Window removal set .
- 4.1 Cut outer adhesive bead -1-
all the way around using > V.A.G 1561B - Electric cutter
and angled blade.
Inner adhesive bead
- Cut carefully. Do not damage the paintwork or windscreen
.
- Remove front panoramic roof glass panel.
