Installing Front Panoramic Roof Glass Panel

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Danger of material damage if specified curing time of adhesive is not observed! In order to ensure that the bonded joint is sufficiently strong, the following conditions must be adhered to:

The vehicle must not be used until the curing time has elapsed .
Curing time: 2 hours
Temperature: at least 10°C
Fixing time: approx. 1 hour

Information

Check stop bits .
Replace damaged or missing stop bits .

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Applying 2-component window adhesive

2-component window adhesive has an open time of -10 min- , i.e. apply 2-component window adhesive and join the component within this time .
To ensure that the substance is completely mixed, apply a 30 mm long bead of fresh 2-component window adhesive to a piece of cardboard before using it .

Prepare 2-component adhesive for processing.
WM, 6X00IN30 WORKING WITH ADHESIVE TAPE AND ADHESIVE PADS

Information
- When applying 2-component window adhesive, make sure that the adhesive bead overlaps by approx. 30 mm at the beginning and at the end .

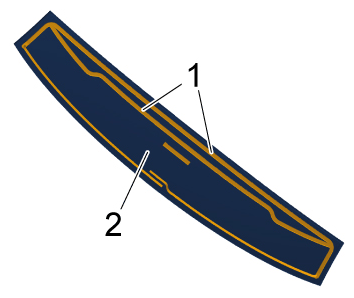

Apply 2-component window adhesive -1- along the preliminary coat or on the primer on the front panoramic roof glass panel -2- as a triangular bead measuring approx. 15 mm using a bonding gun.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Applying 2-component window adhesive

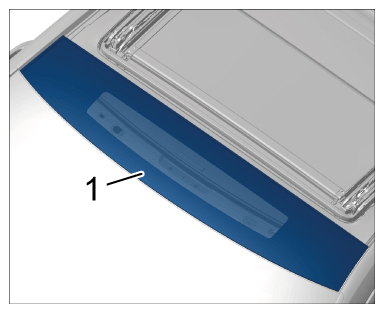

Insert front panoramic roof glass panel -1- into the body.
1. 3.1 Affix suction cups to the front panoramic roof glass panel -1- .
2. 3.2 Insert front panoramic roof glass panel -1- into the roof cut-out on the front panoramic roof.
3. 3.3 Press front panoramic roof glass panel -1- evenly onto the body.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inserting panoramic roof glass panel
Set gap dimensions of front panoramic roof glass panel with respect to the windscreen and sliding roof by moving it.
> WM, 5X00IN GAP DIMENSION
Secure the front panoramic roof glass panel -1- to the body and windscreen with adhesive tape.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inserting panoramic roof glass panel

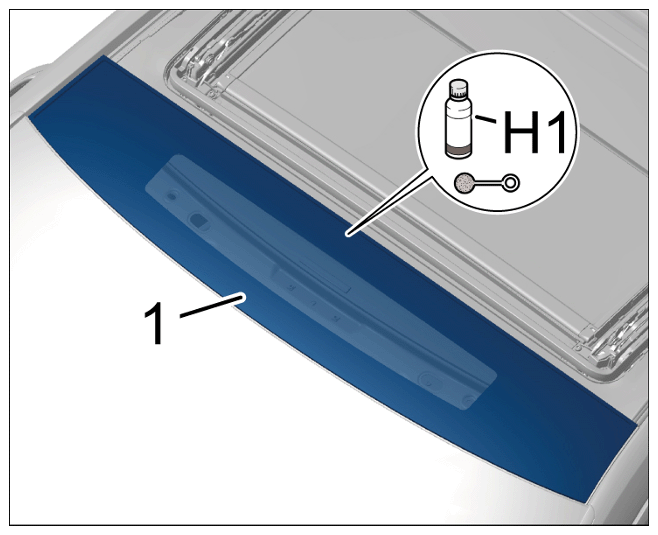

Remove any adhesive that has oozed out immediately and clean the affected visible areas using cleaning solution -H1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cleaning front panoramic roof glass panel
Clean the front panoramic roof glass panel completely.
