Removing Sliding-Roof Panel

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Repair illustrations show one side of the vehicle or describe a similar component .
Complete certain steps on the opposite side of the vehicle as well .

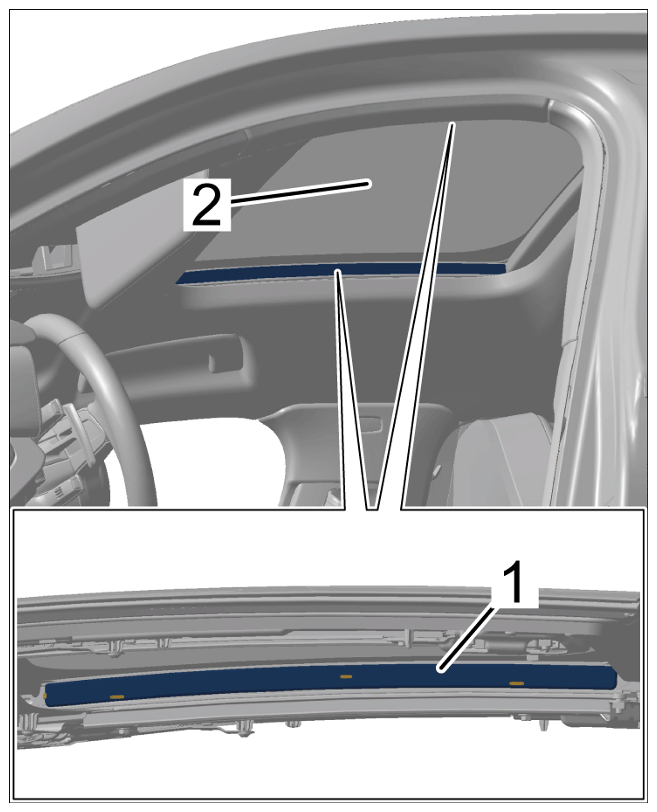

Raise sliding-roof panel -2- until the side covers -1- are accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing side covers

Remove side covers.

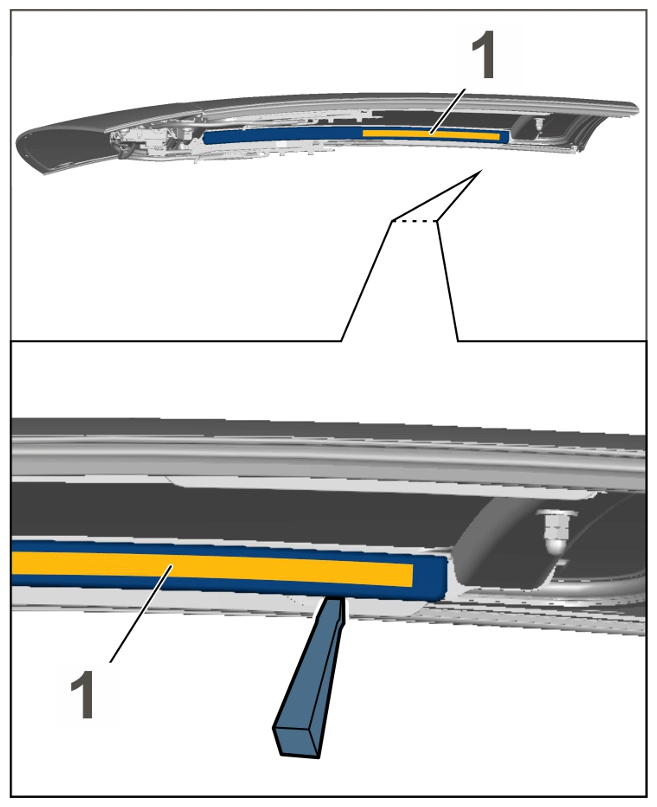

2.1 Loosen bonding area -1- of the side covers using a plastic wedge.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area of side cover

2.2 Unclip side cover -1- starting at the rear and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing side covers

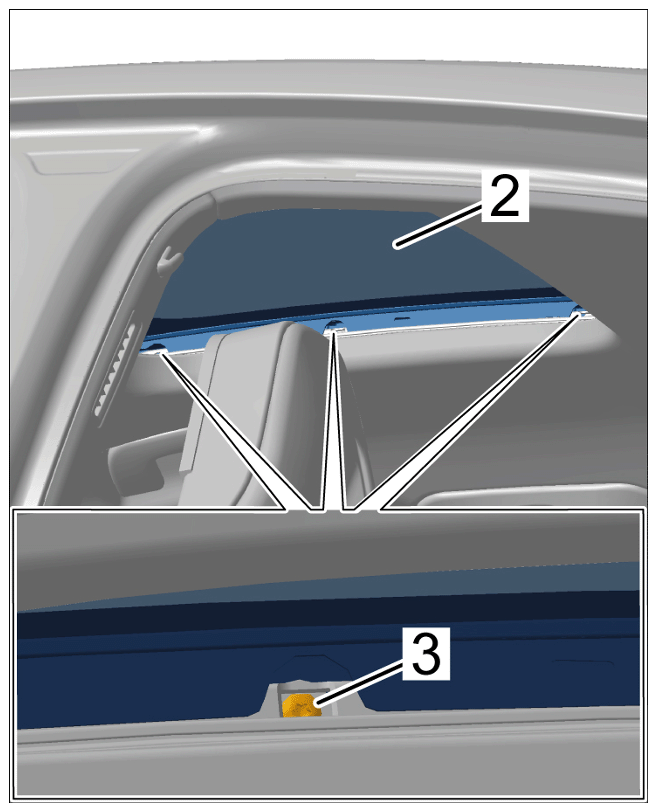

Remove sliding-roof panel -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing sliding-roof panel

Information

Move sliding-roof panel to various positions in order to access the screws.

3.1 Unscrew and remove screws -3- .
3.2 Remove sliding-roof panel -2- .
