Installing Sliding-Roof Panel

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Repair illustrations show one side of the vehicle or describe a similar component .
Complete certain steps on the opposite side of the vehicle as well .

Insert sliding-roof panel into the powered sunroof mechanism from above and screw in screws hand-tight.
Adjust sliding-roof panel.
> 604015 ADJUSTING SLIDING-ROOF PANEL
Tighten the screws > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
Remove adhesive residues from the sliding roof in area -1- and clean it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area of side cover

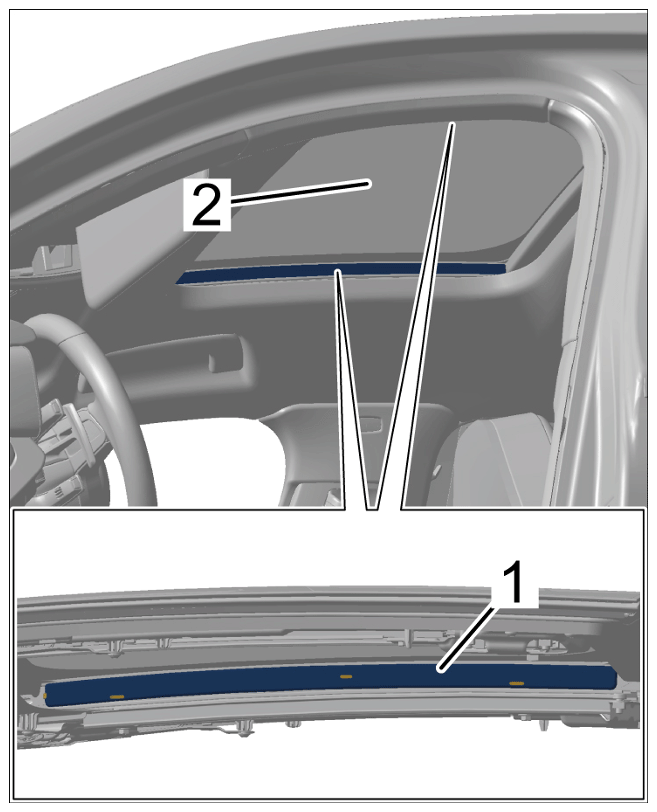

Raise sliding-roof panel -2- so that the side covers -1- can be installed.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clipping in side covers

Information

Check clips and replace side covers if necessary.

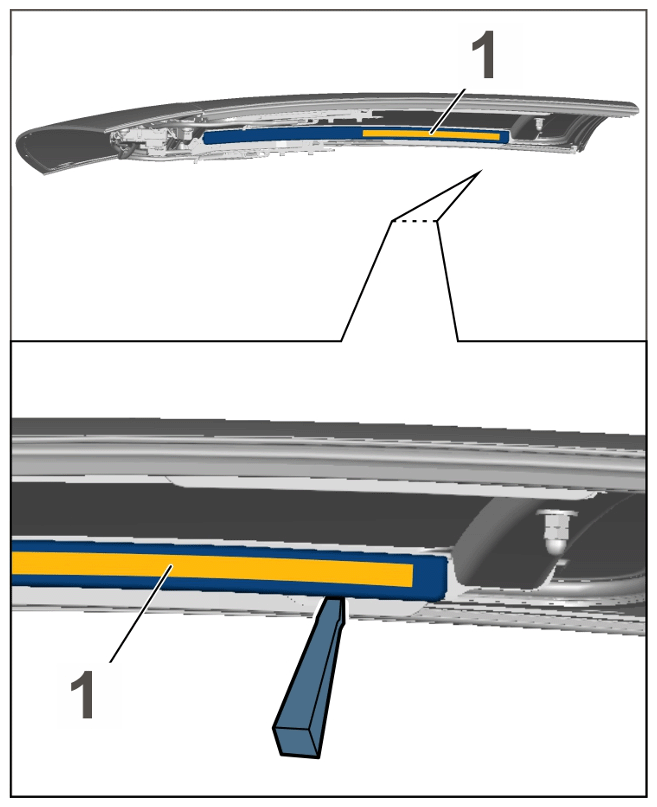

Clip side covers -1- into the guide rail for the sliding roof.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clipping in side covers

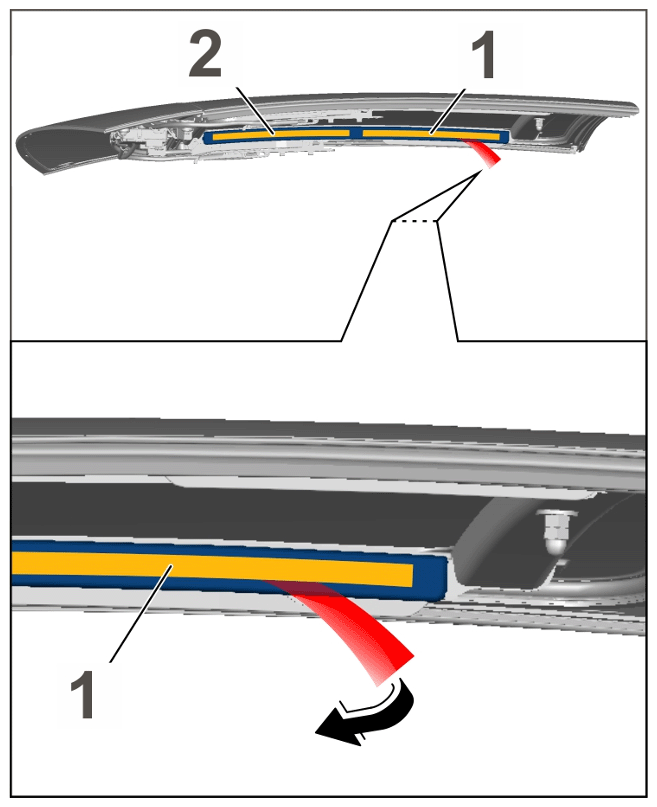

Remove protective film in area -1- and press on cover.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side cover
The protective film in area -2- is not removed.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side cover
