Technical Values

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...	Toleranc...

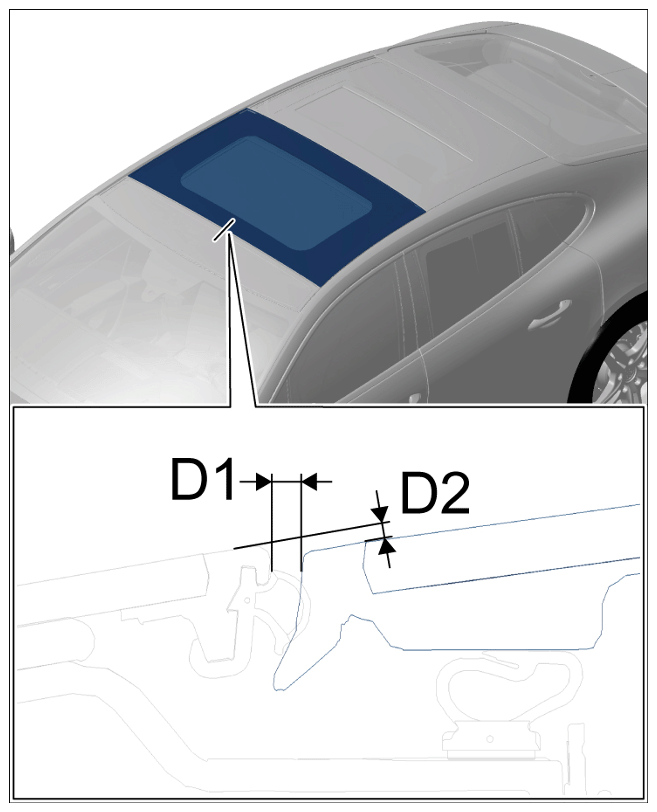

Front roof to sliding-roof panel (D1)		Gap dimension	3 mm	+/- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Front roof to sliding-roof panel (D2)	Offset	Gap dimension	1.2 mm	+/- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

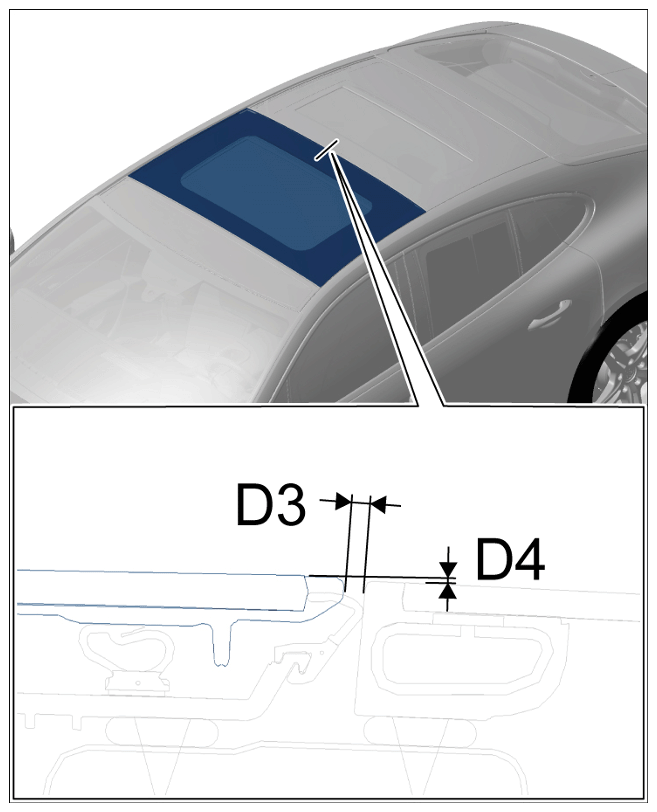

Sliding-roof panel to rear lid (D3)		Gap dimension	3 mm	+/- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Sliding-roof panel to rear lid (D4)	Offset	Gap dimension	0.5 mm	+/- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

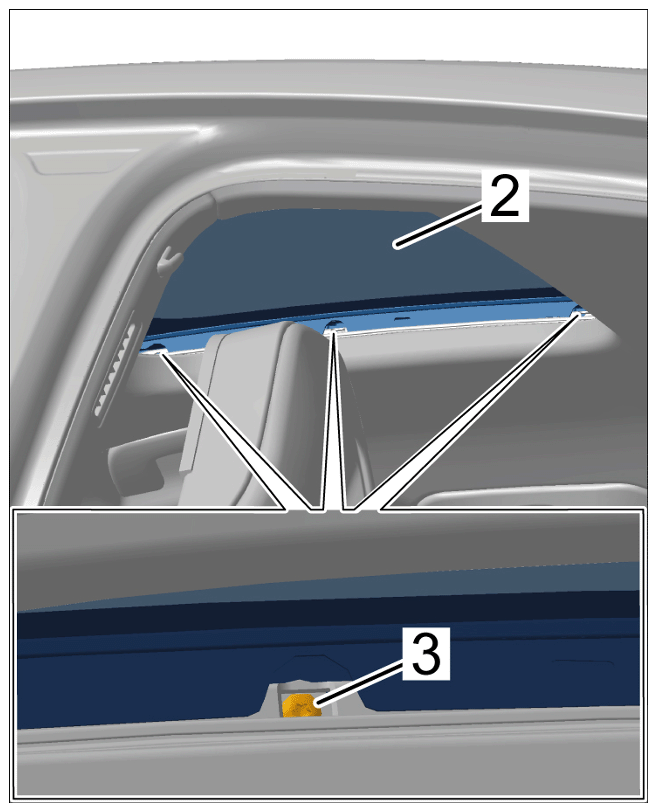

Screw on sliding-roof panel	Item 3	Tightening torque	5.5 Nm (4 ftlb.)	+/- 0.5 Nm (0.3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on sliding-roof panel
