Preliminary Work
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Repair illustrations show one side of the vehicle or describe a similar component
.
- Complete certain steps on the opposite side of the vehicle as well
.

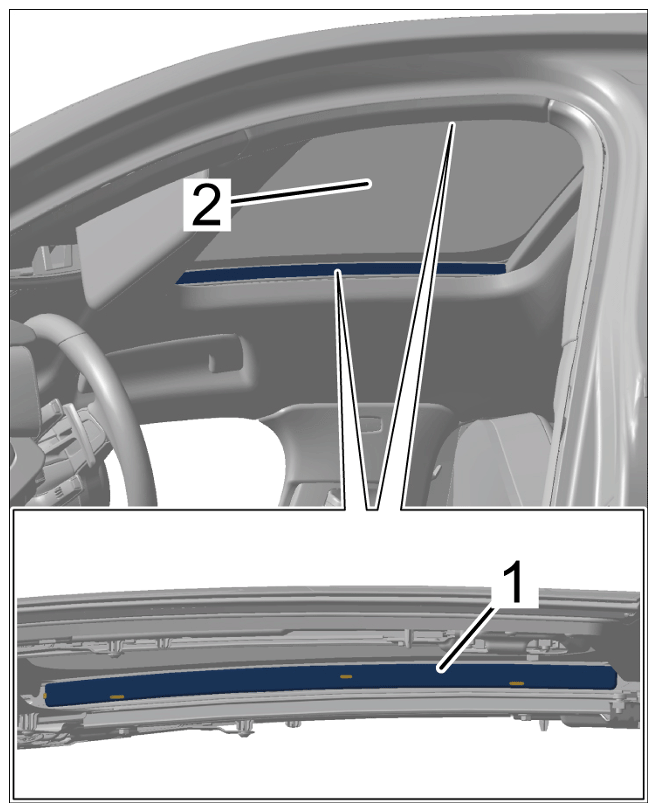

- Raise sliding-roof panel -2-
until the side covers -1-
are accessible.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing side covers
- Remove side cover.

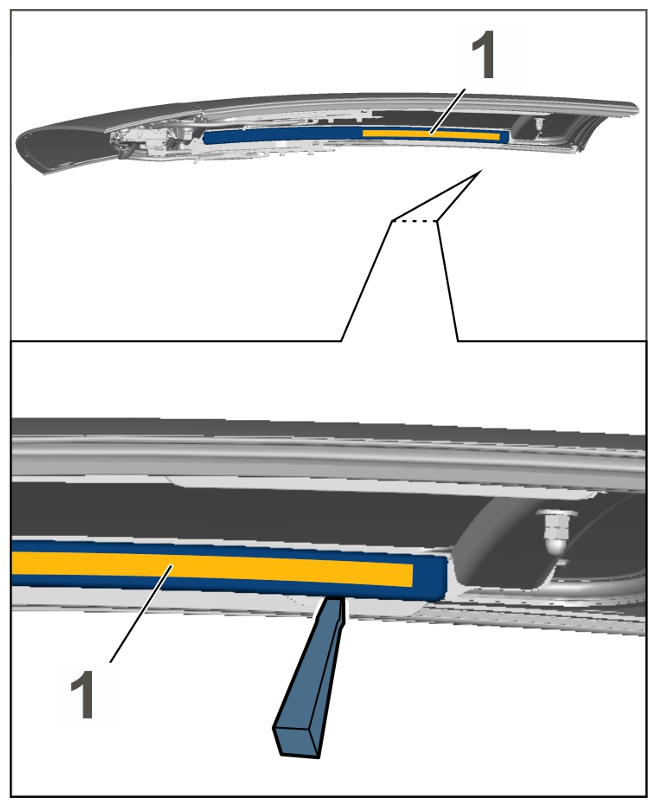

- 2.1 Loosen bonding area -1-
of the side covers using a plastic wedge.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Bonding area of side cover
- 2.2 Unclip side cover -1-
starting at the rear and remove it.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing side covers
