Adjusting Sliding-Roof Panel

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

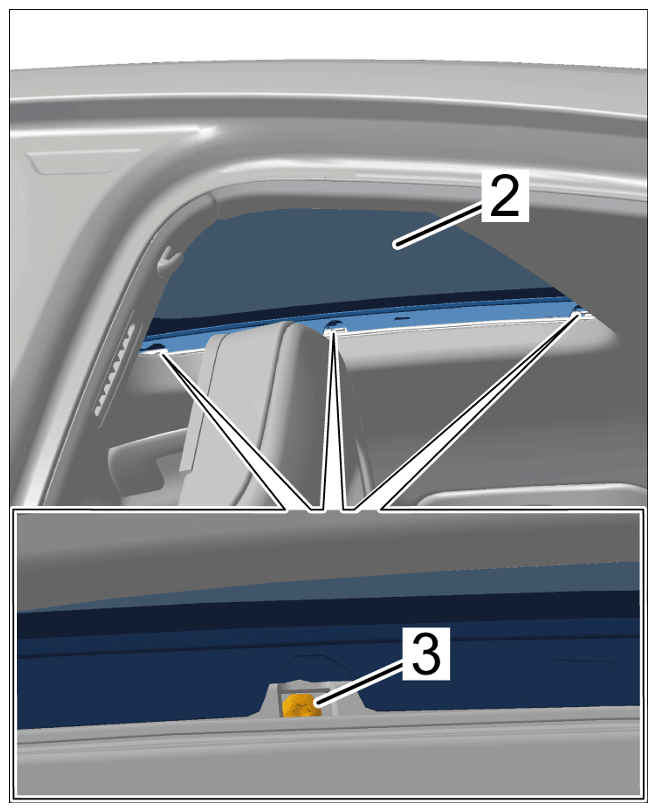

Close sliding-roof panel -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening bolts
Loosen screws -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening bolts

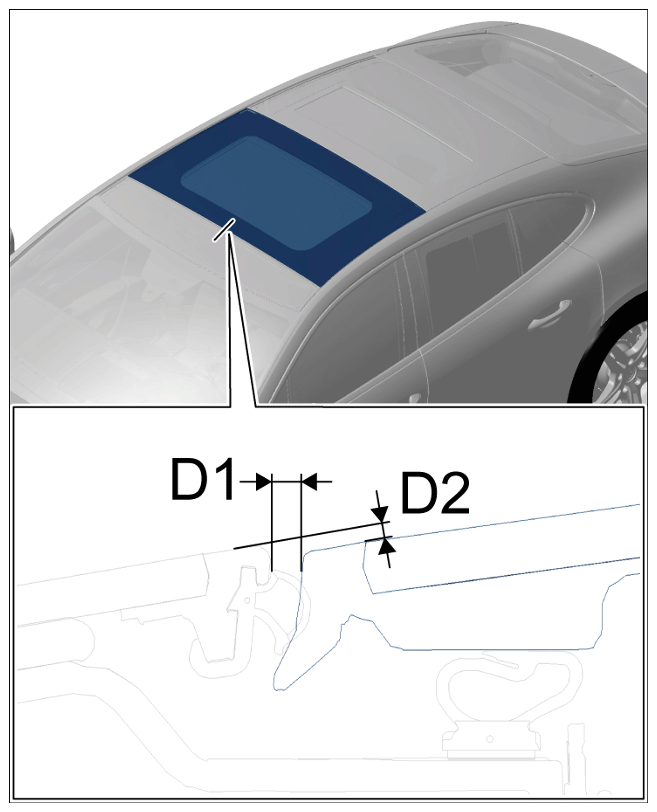

Adjust the front sliding-roof panel by moving the panel.
> Gap dimension 3 mm +/- 0.9 mm

> Gap dimension 1.2 mm +/- 0.9 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension

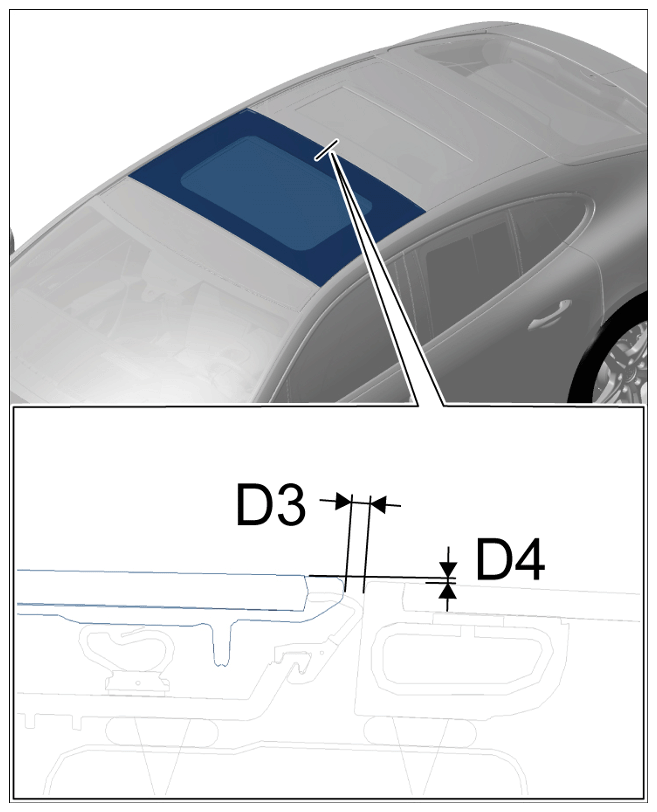

Adjust the rear sliding-roof panel by moving the panel.
> Gap dimension 3 mm +/- 0.9 mm

> Gap dimension 0.5 mm +/- 0.9 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Gap dimension
Tighten screw securing sliding-roof panel to guide rail > Tightening torque 5.5 Nm (4 ftlb.) +/- 0.5 Nm (0.3 ftlb.)
