Technical Values

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...	Toleranc...
Nut on sliding roof element	Item 1	Tightening torque	2.4 Nm (1.8 ftlb.)	+/- 0.1 Nm (0.07 ftlb.)

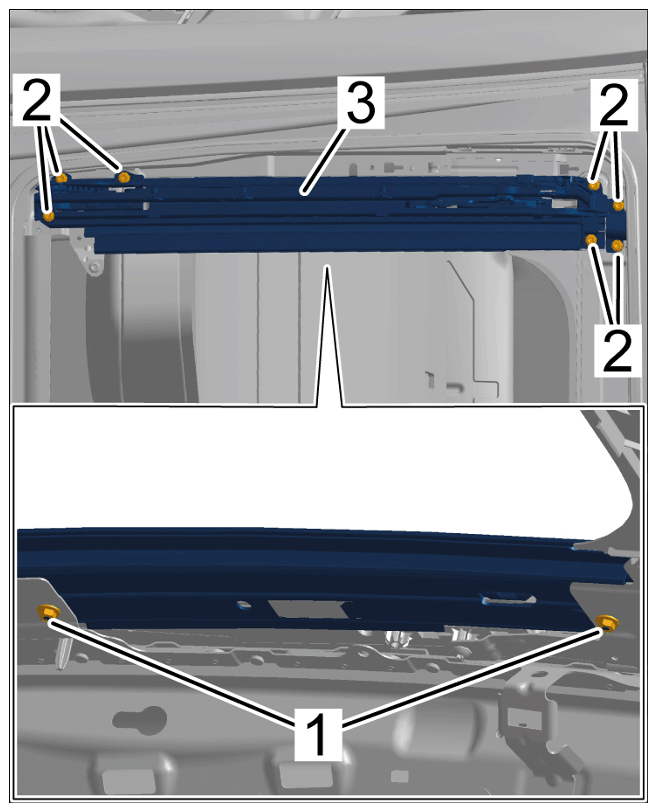

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts on sliding roof element
Screw on sliding roof element	Item 2	Tightening torque	2.5 Nm (1.8 ftlb.)	+/- 0.3 Nm (0.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on sliding roof element
Position of drivers with respect to each other		Measured value	0 mm	+/- 1 mm
Position of drivers with respect to each other		Measured value	0 mm	+/- 1 mm
Position of drivers with respect to each other		Measured value	0 mm	+/- 1 mm
Position of drivers with respect to each other		Measured value	0 mm	+/- 1 mm
