Removing Powered Sunroof Mechanism

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Guide pieces -4-  can fall out when removing the drive cables.

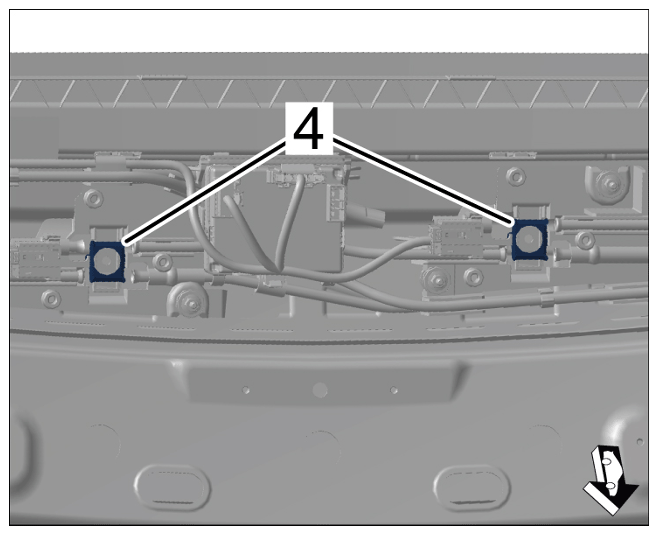

G15864448Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing guide pieces

  1. Remove powered sunroof mechanism -3-  .

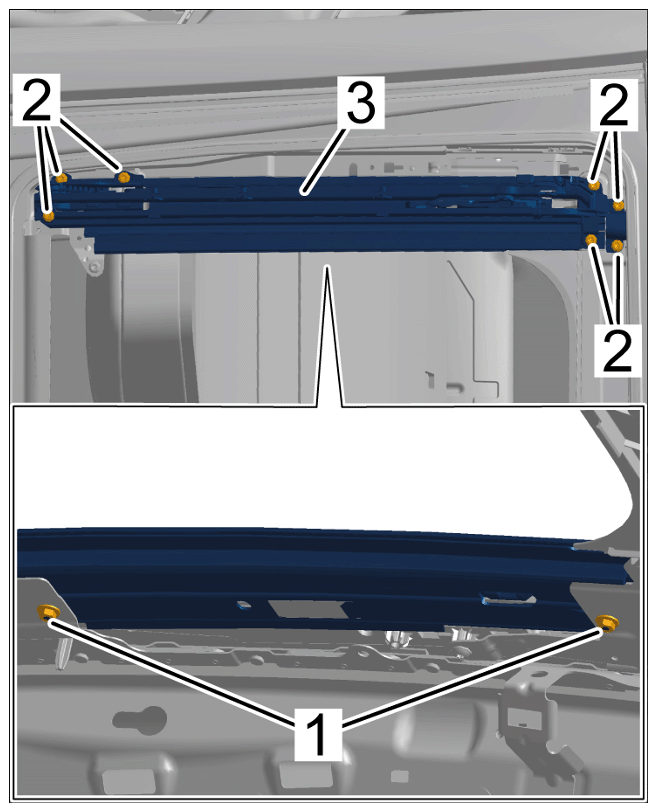

G15864449Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing powered sunroof mechanism

  1. 1.1 Unscrew nuts -1-  on powered sunroof mechanism -3-  .
  2. 1.2 Unscrew screws -2-  on powered sunroof mechanism -3-  .
  3. 1.3 Remove powered sunroof mechanism -3-  by pulling it up. Also pull drive cables for (front) sun blind and glass sliding roof out of the guides.
