Installing Powered Sunroof Mechanism

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Guide drive cables for (front) sun blind and glass sliding roof into the guides.

    Also check that the guide pieces -4-  are fitted correctly.

    G15864450Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Inserting drive cables into guides

    Information

    There must be no play between the powered sunroof mechanism and cable guide holder.

  2. Push powered sunroof mechanism -3-  into the roof assembly as far as the cable guide holder.

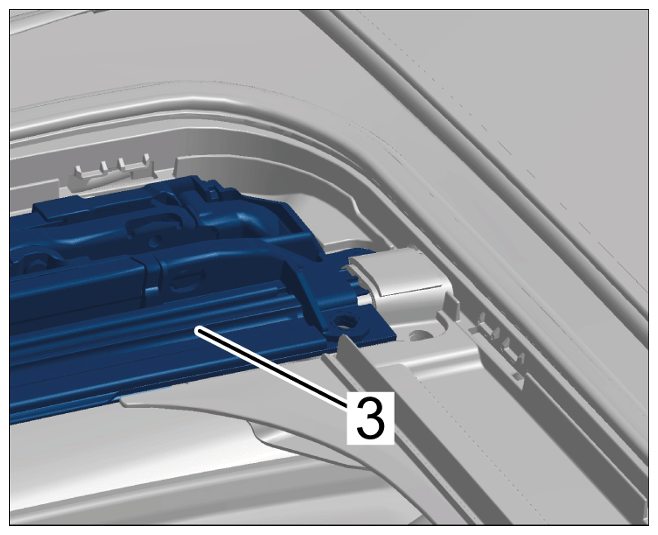

    G15864451Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pushing powered sunroof mechanism into cable guide holder

  3. Screw in and tighten screws > Tightening torque 2.5 Nm (1.8 ftlb.) +/- 0.3 Nm (0.2 ftlb.)
  4. Screw in and tighten nuts > Tightening torque 2.4 Nm (1.8 ftlb.) +/- 0.1 Nm (0.07 ftlb.)
