Adjusting Powered Sunroof Mechanism
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
- Press both roof hydraulic cylinders -5-
to the lowest position.

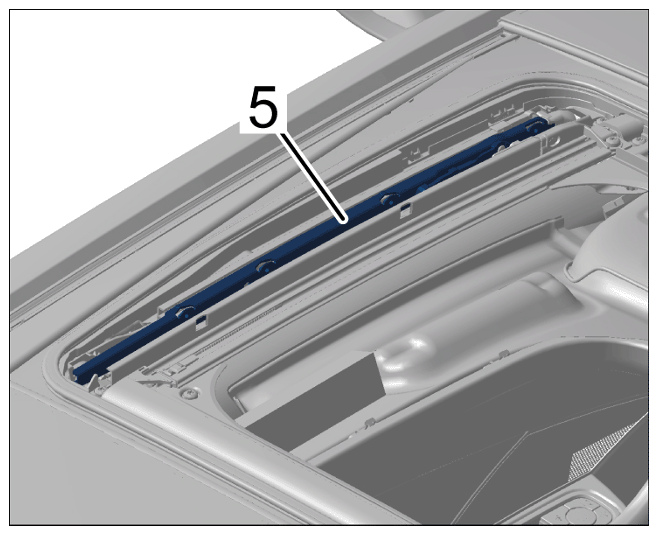

Pressing roof hydraulic cylinders to the lowest position
- Install motor for glass sliding roof, but do not connect electric plug connection.
> 601419 REMOVING AND INSTALLING MOTOR FOR GLASS SLIDING ROOF
- Check the position of the drivers -6-
at the left and right.
- 3.1 Extend roof hydraulic cylinders manually until the driver -6- is visible in the opening.
- 3.2 Compare the position of the drivers -6- at the left and right > Measured value 0 mm +/- 1 mm

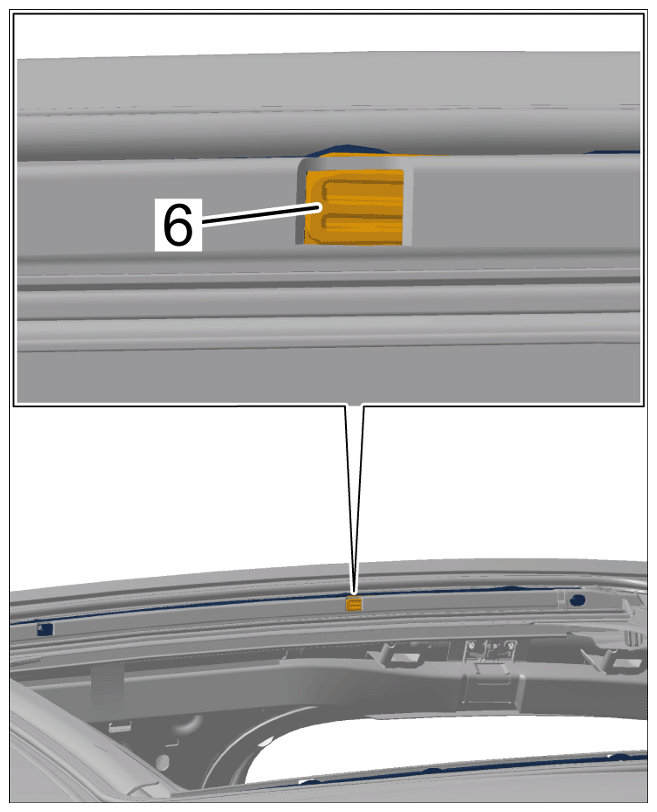

Checking position of drivers
Information
The adjustment procedure must be repeated as often as required until the position of the left and right drivers with respect to each other is within the tolerance range.
- If the position of the drivers -6-
at the left and right is not within the tolerance range:
Adjust the position of the drivers at the left and right.
- 4.1 Remove motor for glass sliding roof.
> 601419 REMOVING AND INSTALLING MOTOR FOR GLASS SLIDING ROOF
- 4.2 Adjust the position of the drivers -6- at the left and right.
- 4.3 Install motor for glass sliding roof, but do not connect electric plug connection.
> 601419 REMOVING AND INSTALLING MOTOR FOR GLASS SLIDING ROOF
- 4.4 Completely extend and close roof hydraulic cylinders at the left and right manually once.
- 4.5 Extend roof hydraulic cylinders at the left and right manually until the drivers -6- at the left and right are visible in the opening.
- 4.6 Compare the position of the drivers -6- at the left and right > Measured value 0 mm +/- 1 mm
- 4.1 Remove motor for glass sliding roof.
Adjusting position of drivers
