Removing Air Deflector
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
- Open sliding roof fully.
- Carefully unclip air deflector -1-
all the way around using a plastic wedge.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Unclipping air deflector
- Unscrew and remove screws -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

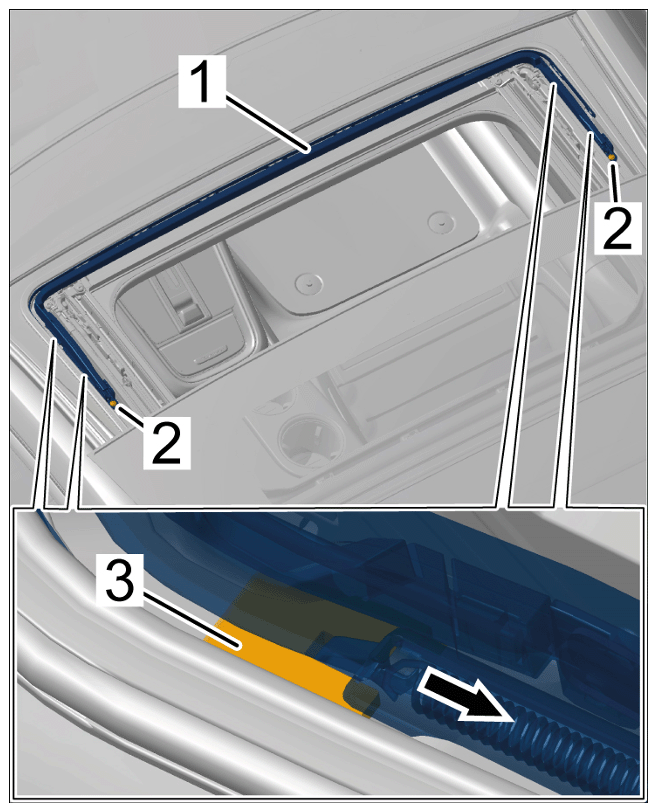

Unscrewing screws
- Push air deflector -1-
to the rear and out of the guides -3-
(-arrow-
) and remove it.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Removing air deflector
