Technical Values

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Location Descri... Type Basic value Tolerance 1 Tolerance 2
Screw on motor for glass sliding roof Item 2 Tightening torque 3 Nm (2 ftlb.) +/- 0.3 Nm (0.2 ftlb.)
G15864437Courtesy of PORSCHE CARS NORTH AMERICA, INC.

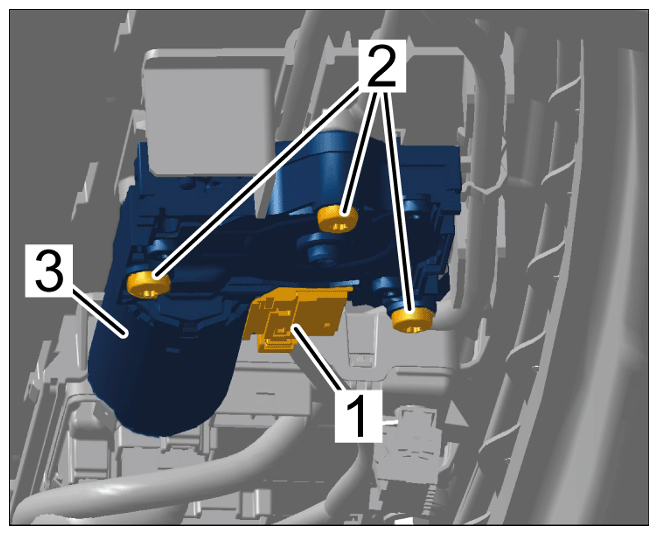

Screws on motor for glass sliding roof
