Removing Motor For Glass Sliding Roof

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Electrically moved components
  • Danger of limbs being trapped or severed

    → Switch off electric power to drive motor.

    → Make sure it does not switch on again.

    → Check that there is no electric charge.

  1. Remove motor for glass sliding roof -1-  .

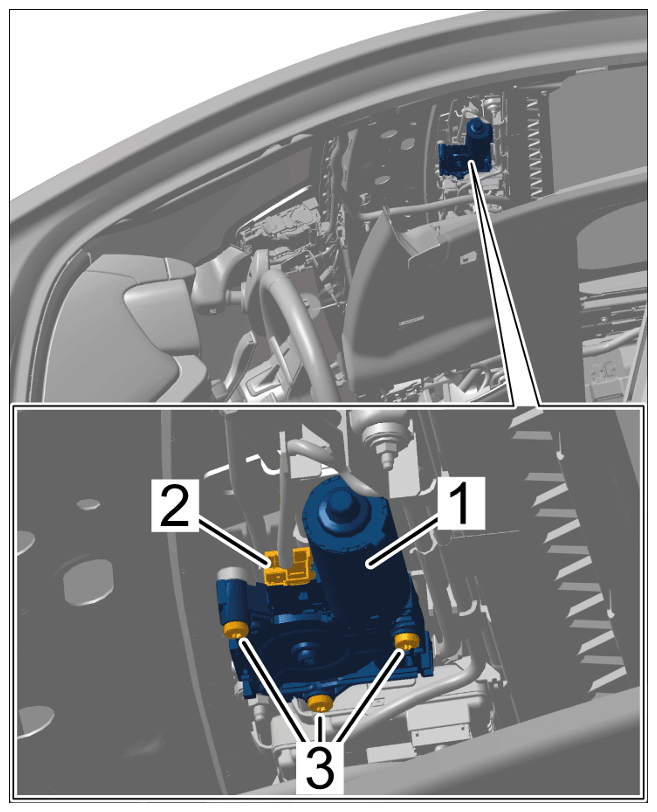

G15864438Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing motor for glass sliding roof

  1. 1.1 Release and unplug electric plug connection -2-  .
  2. 1.2 Unscrew and remove screws -3-  .
  3. 1.3 Remove motor for glass sliding roof -1-  .
