Tools And Materials
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

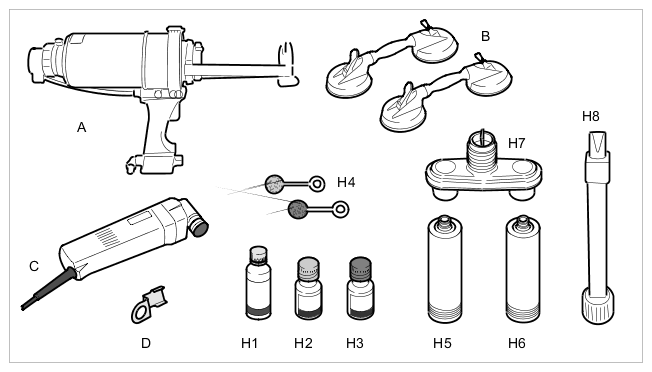

The following tools and materials are required for removing and installing the roof assembly with 2-component window adhesive:
Tools and materials
| A | Double cartridge gun VAS 5237; see Workshop Equipment Information, Chapter 3.5 |
| B | Suction cups VAG 1344; see Workshop Equipment Information, Chapter 3.5 |
| C | Special electric cutter (fine) VAG 1561 A; see Workshop Equipment Information, Chapter 3.5 |
| D | Flashing knife, U-shaped 639.031.130.22; see Parts Information, Main Article 8 |
| H | 2-component window bonding agent 000.043.300.94, contains set components H1 - H8; see Parts Information, Main Article 8 |
| H1 | Cleaning solution |
| H2 | Primer |
| H3 | Activator |
| H4 | Swab |
| H5 | Cartridge, component A |
| H6 | Cartridge, component B |
| H7 | Mixing nozzle |
| H8 | Processing nozzle |

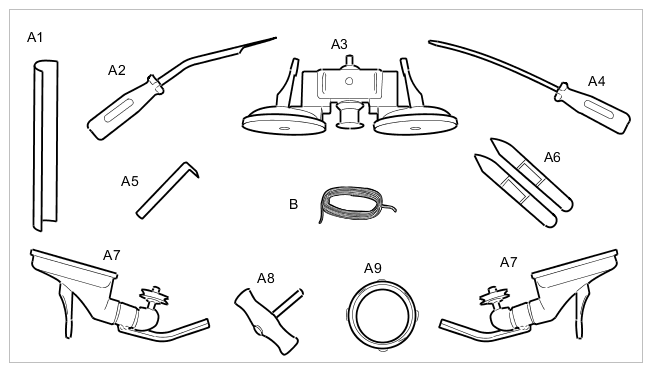

Tools and materials
| A | Removal kit for flush bonded windows VAG 1474 B, contains set components A1 - A9; see Workshop Equipment Information, Chapter 3.5. |
| B | Cutting thread; see Parts Information, Main Article 8 |
| A1 | Guide rail |
| A2 | Cutting tool (wire holder) |
| A3 | Spooling device |
| A4 | Awl |
| A5 | Guide rail |
| A6 | Filler |
| A7 | Steering roller with arm bracket |
| A8 | Handle |
| A9 | Square cutting wire |
