Preparing Roof Cut-Out For Roof Assembly

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

The surface coating of adhesive residue helps new adhesive to stick. Keep cut surfaces clean and free of grease and do not clean with cleaning solution .

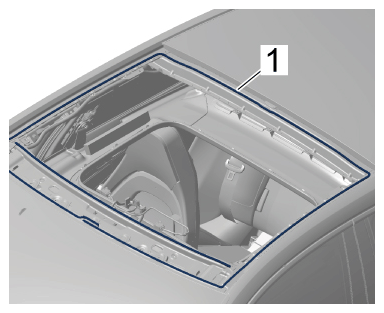

When removing adhesive residue of the adhesive bead -1- with a cutter and flashing knife on the body, ensure that a surface coating of adhesive residue remains.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing adhesive residue

Information
- A drying time of 10 minutes must be observed between cleaning the bonding surface and applying primer! There must be no cleaning solution residues left on the body .

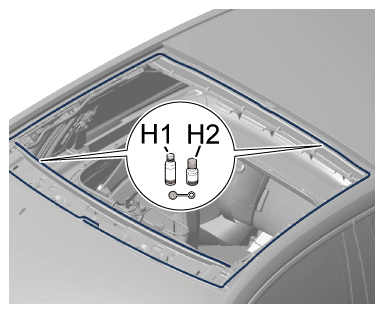

Clean new paint surfaces and damaged areas of the top coat paint in the non-visible area of the roof cut-out in the body with cleaning solution -H1- and touch up with primer -H2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cleaning and priming paint surfaces and damaged areas
