Preparing Roof Assembly

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. When removing the bead of adhesive on the new roof assembly -1-  with a cutter and flashing knife, ensure that a surface coating of adhesive residue remains.
    G15864430Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Adhesive residue

  2. Apply activator -H3-  to the adhesive residue that was cut back.

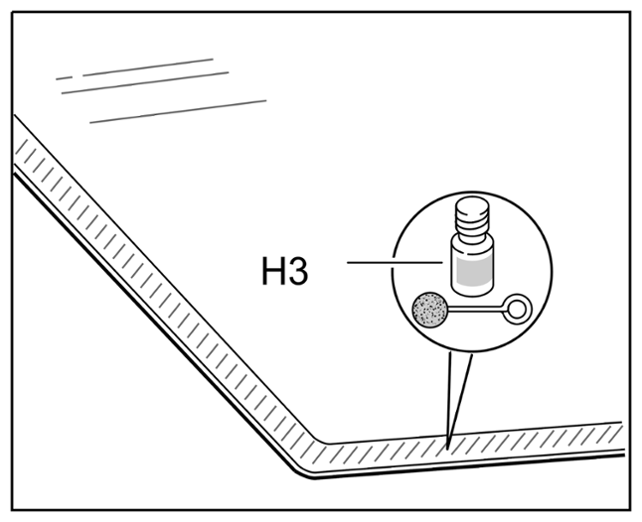

G15864431Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Applying activator
