Removing Roof Assembly

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Vehicle windows removed and installed incorrectly

Danger of cuts
Risk of eye injuries
→ Wear personal protective gear.

→ Always shut off power supply when replacing cutting knife.

Information

The roof assembly cannot be removed without damaging it.

Information

The procedure for removing car windows is described in
WM, 6X00IN GENERAL INFORMATION ON REMOVING CAR WINDOWS

Information

Cut carefully. Do not damage the paintwork, windscreen or panoramic roof glass panel.

Information

Remove washers.

Loosen the roof assembly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

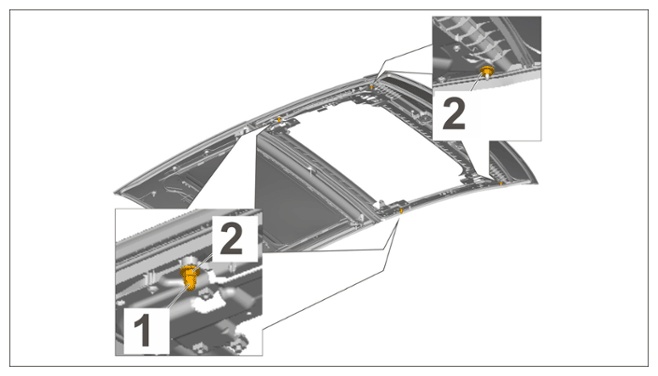

Nuts on roof assembly

Information

The cap nut on the rear roof assembly protects the airbag from being pushed in the event of a crash and must therefore always be re-installed.
1. 1.1 Unscrew cap nuts -1- .
2. 1.2 Unscrew nuts -2- .

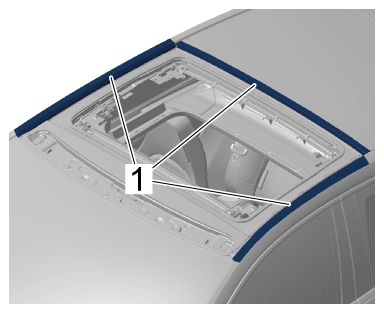

Mask the roof pillar and rear panoramic roof glass panel using adhesive tape -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adhesive tape
Cover the interior of the vehicle.

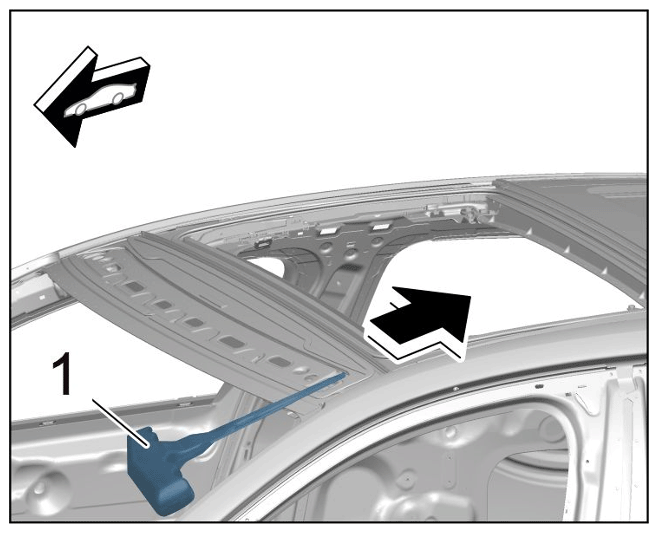

Pierce adhesive bead on the left roof edge using a scratch awl -1- and guide cutting cord into the interior of the vehicle -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cutting thread

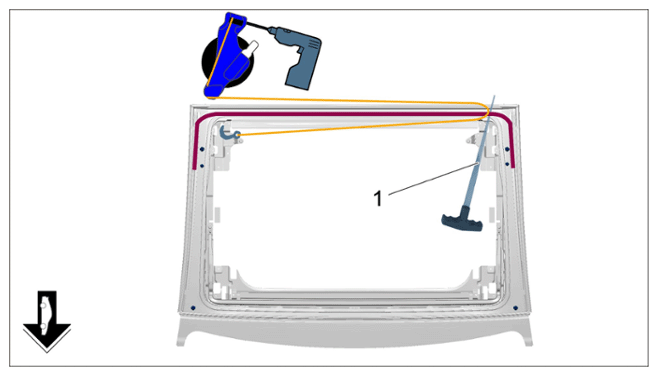

Cut adhesive bead at the front using > VAS 861 001A - Window removal set > Adhesive bead at the front

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adhesive bead at the front

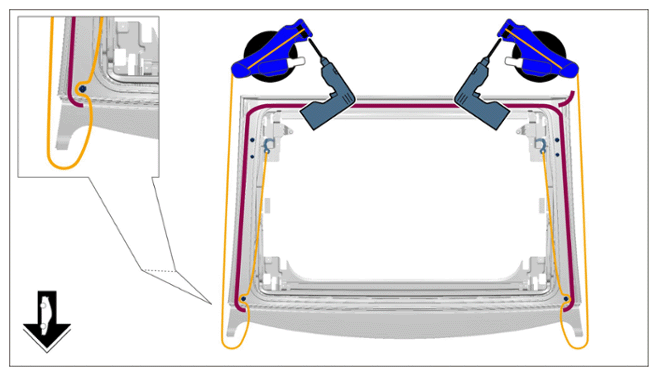

Cut adhesive bead on both sides using > VAS 861 001A - Window removal set > Adhesive bead at the sides

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adhesive bead at the sides

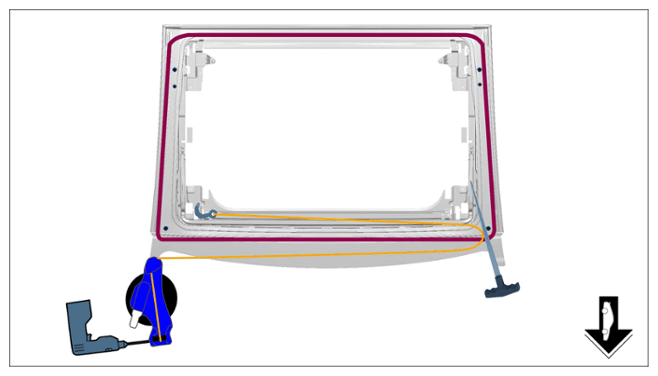

Cut rear adhesive bead.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adhesive bead at the rear
1. 7.1 Pierce adhesive bead on the rear roof assembly at the left using a scratch awl -1- and guide cutting cord into the interior of the vehicle.
2. 7.2 Cut adhesive bead at the rear using > VAS 861 001A - Window removal set .

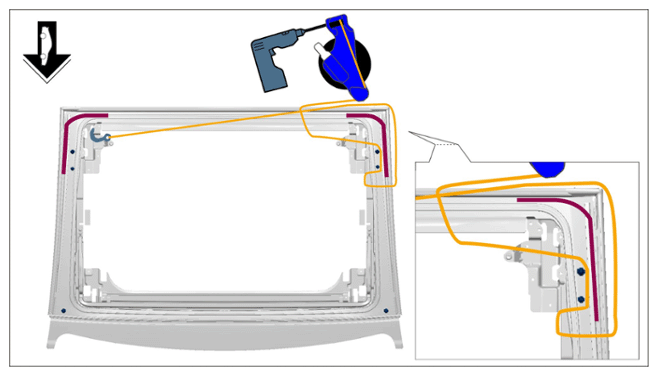

Cut adhesive bead at the rear corner on both sides using > VAS 861 001A - Window removal set > Adhesive bead at rear corner

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adhesive bead at rear corner
Remove roof assembly with the help of another person.
