Investigation Results

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

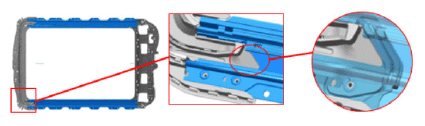

A recent investigation found that the frame is not leaking at the corners due to a sealing issue.

Water was found to be leaking at the corners as a result of more water accumulating in the frame than it was designed to handle.

Water was overflowing the areas designed to channel the water to the drains.

G15864413Courtesy of PORSCHE CARS NORTH AMERICA, INC.

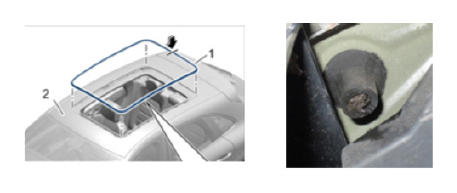

A combination of factors was causing the accumulation-

  1. Too much water leaking past the outer seal (poorly adjusted frames contributed to this).
  2. Drains clogged or not clear enough.
G15864414Courtesy of PORSCHE CARS NORTH AMERICA, INC.
