Removing Air Vent

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

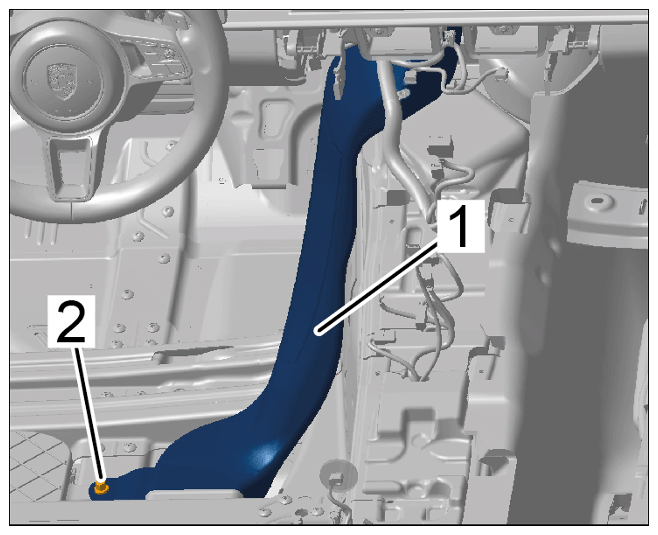

Screw off nut -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing nut

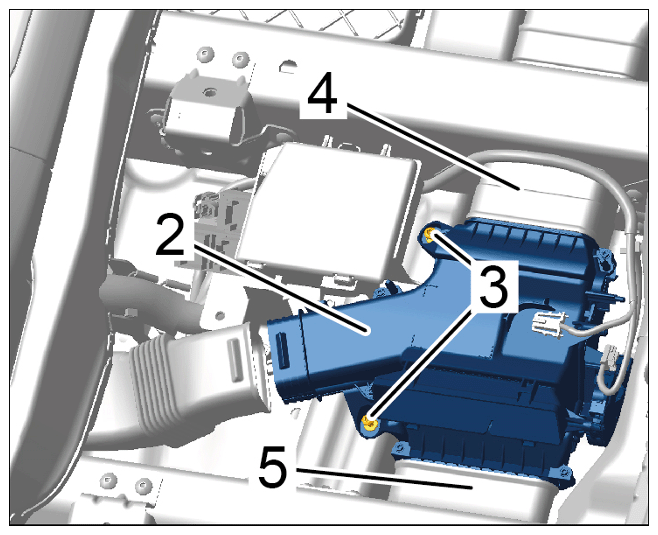

Loosen air vent -2- from air guide in front centre console -5- and rear centre air guide -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening air vent
1. 2.1 Pull rear centre air guide -4- out of the air vent -2- .
2. 2.2 Unscrew clips -3- .
3. 2.3 Pull air vent -2- out of air guide in front centre console -5- .

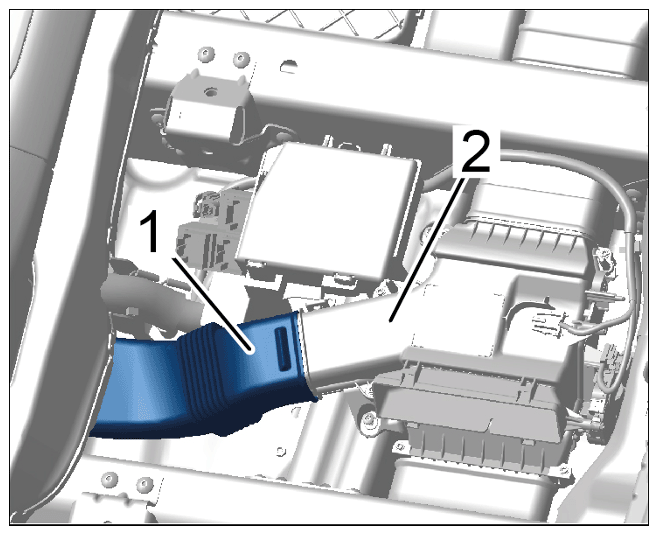

Pull air vent -2- off the air guide on the B-pillar -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling air vent off air guide on B-pillar

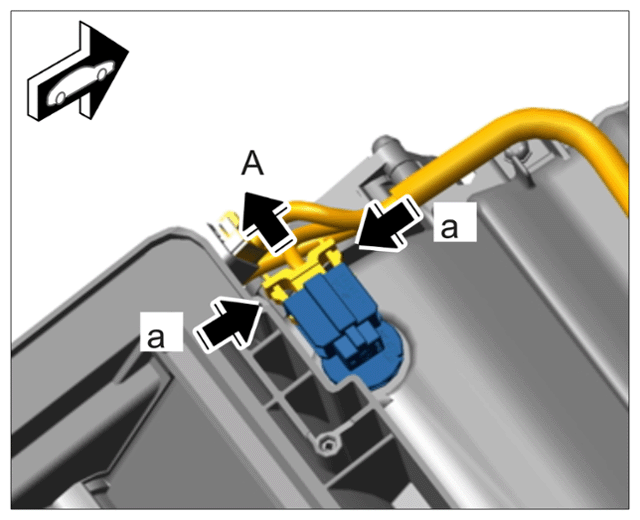

Release electric plug connection on the temperature sensor -arrows a- and disconnect it -arrow A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connection on temperature sensor

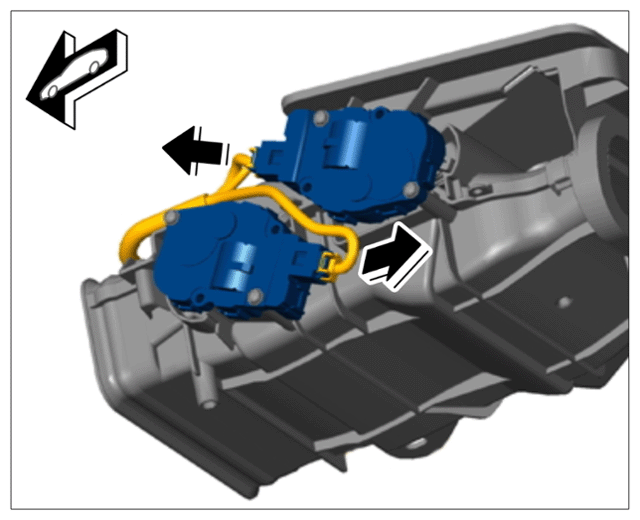

Release and disconnect electric plug connections for servo motors -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and disconnecting electric plug connections for servo motors
Remove air vent by pulling it up.
