Technical Values
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Des... |
Type |
Basic val... |
Toleranc... |
Toleranc... |
| Screw securing refrigerant line to expansion valve |
Item 1 |
Tightening torque |
10 Nm (7.5 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Line connections for expansion valve |
| Screw securing expansion valve to holder |
Item 1 |
Tightening torque |
8 Nm (6 ftlb.) |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

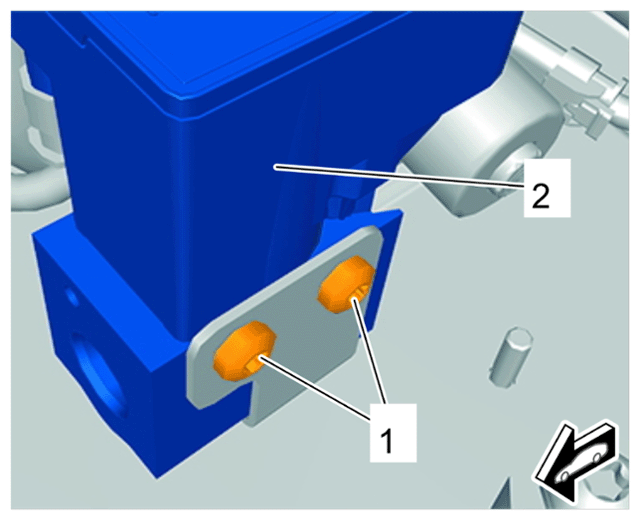

Screws on expansion valve |
