Technical Values

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...

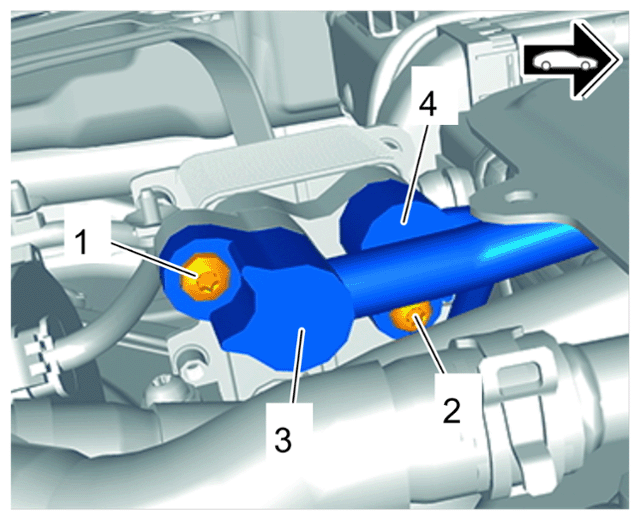

Screw securing refrigerant line to evaporator	Item 1 and 2	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Refrigerant lines

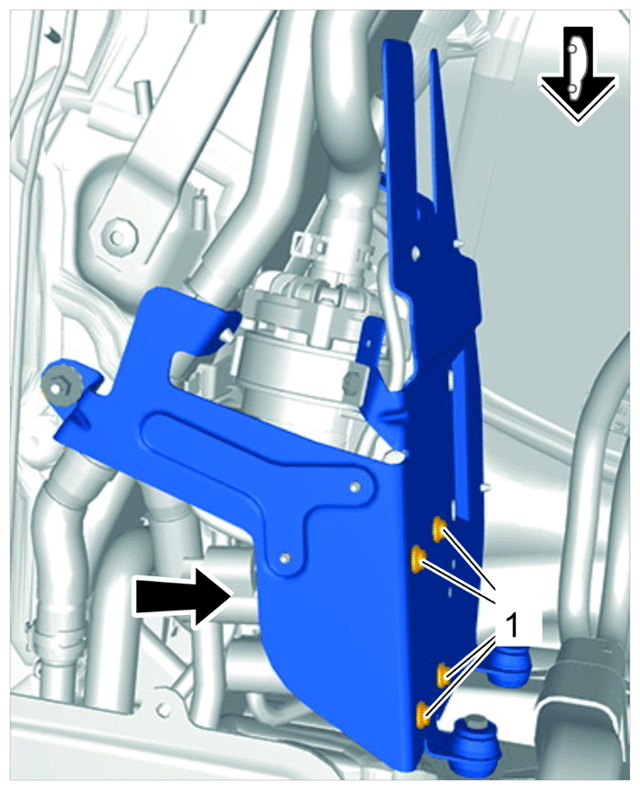

Screw securing evaporator to holder	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on evaporator

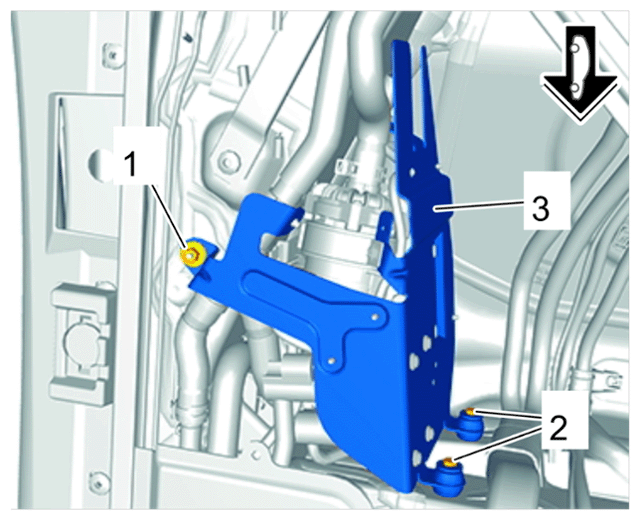

Screw securing evaporator holder to body	Item 2	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Additional air conditioning system holder
Nut securing evaporator holder to body	Item 1	Tightening torque	3.5 Nm (2.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Additional air conditioning system holder
