Removing B-Pillar Air Guide

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Illustration shows driver's side; same procedure for passenger's side.

Disconnect cable duct -4- from the stud -5- and move cable duct -4- aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing cable duct
Disconnect B-pillar air guide -1- from the stud -5- .
Disconnect B-pillar air guide -1- from the air vent and remove it by pulling it up.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

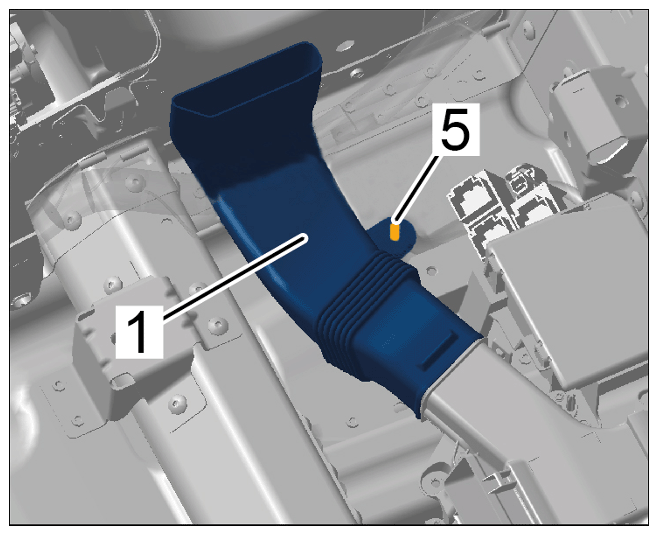

Removing B-pillar air guide
