Removing Air Guide For Lower Part Of Centre Console

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

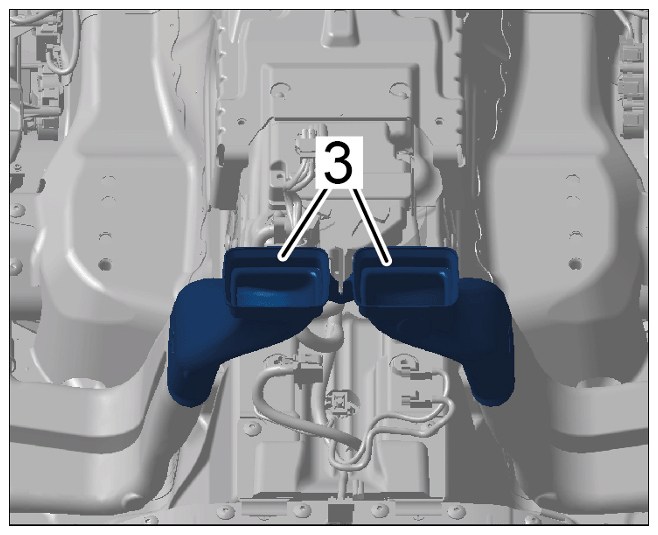

  1. Disconnect air guide for lower part of centre console -3-  from air guide for upper part of centre console and remove it by pulling it up.
    G15875506Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing air guide for lower part of centre console
