Component Information

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
G15875502Courtesy of PORSCHE CARS NORTH AMERICA, INC.

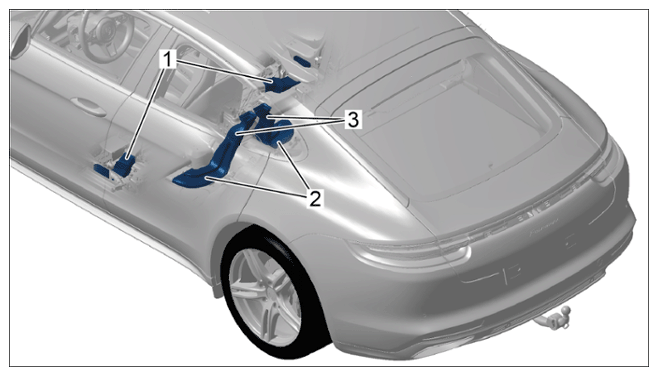

Installation position of air guide for additional air conditioning

1  B-pillar air guide
2  Air guide for upper part of centre console
3  Air guide for lower part of centre console
