Removing Servo Motor For Rear Air Distribution (2-Zone And 4-Zone Air Conditioning)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove servo motor for rear air distribution -1-  .

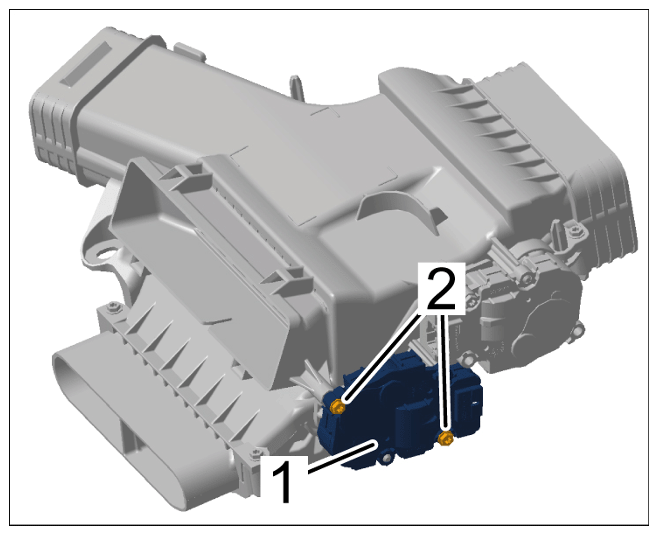

    G15875498Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing servo motor for rear air distribution

    1. 1.1 Unscrew and remove screws -2-  .
    2. 1.2 Remove servo motor for rear air distribution -1-  .
