Removing Rear Air-Conditioning System Control

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Remove air-conditioning system control.

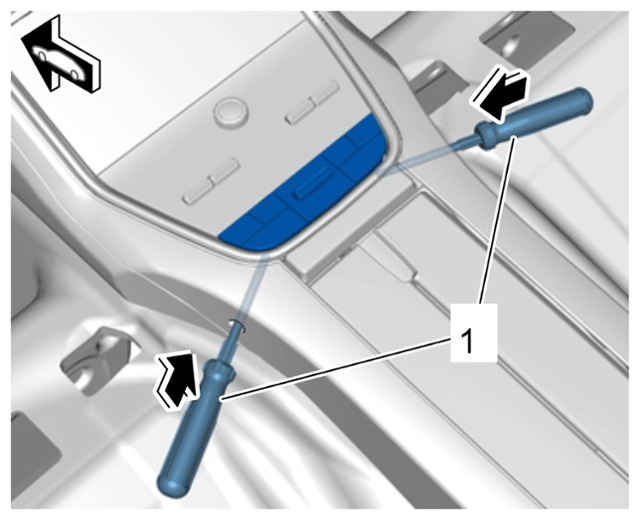

1.1 Insert two screwdrivers -1- at the left and right into the leather slot provided for this purpose on the centre console. When removing it for the first time, the leather slot is barely visible in the centre console. But you can feel the opening behind it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Positioning screwdrivers

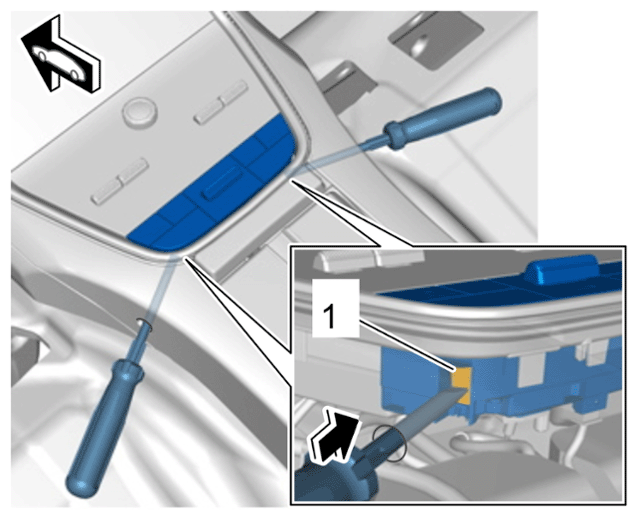

1.2 Press the screwdrivers in as far as required until the metal clips -1- are released from their latching point.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing air-conditioning system control

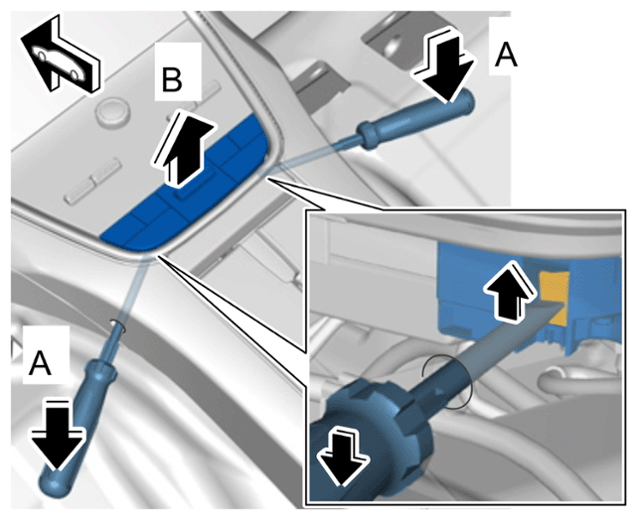

1.3 Press both screwdrivers down at the outside -A- and remove air-conditioning system control by pulling it up -B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing air-conditioning system control

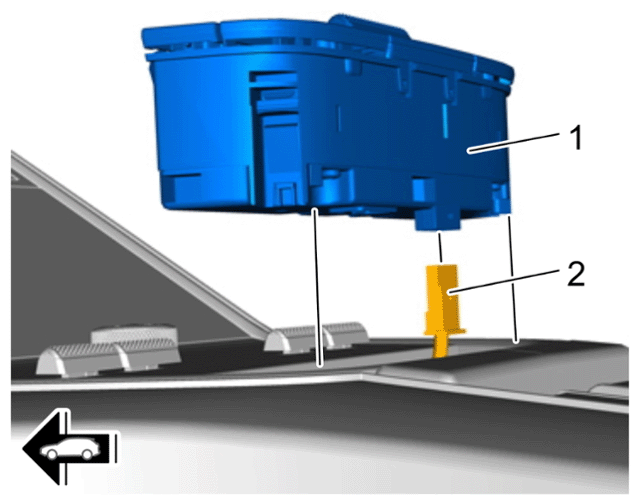

Disconnect electric plug connection -2- from the rear air-conditioning system control -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing electric plug connection
