Servo Motor To Heating/Fresh-Air Unit

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance

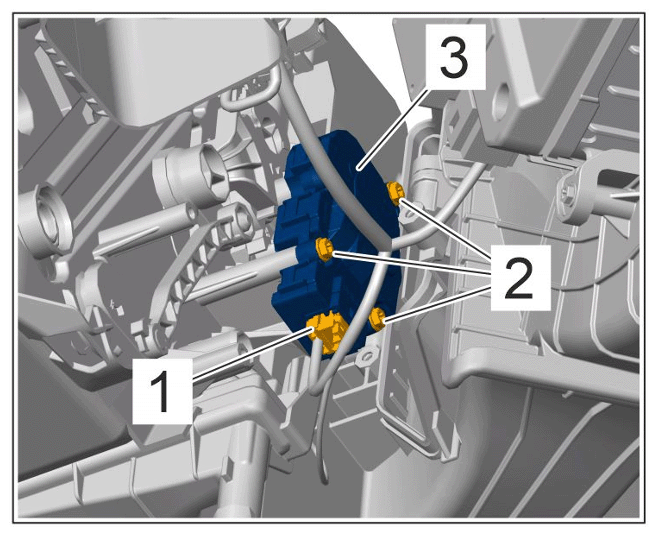

Screw securing servo motor to heating/fresh-air unit	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Servo motor on heating/fresh-air unit

Location	Description	Type	Basic value	Tolerance

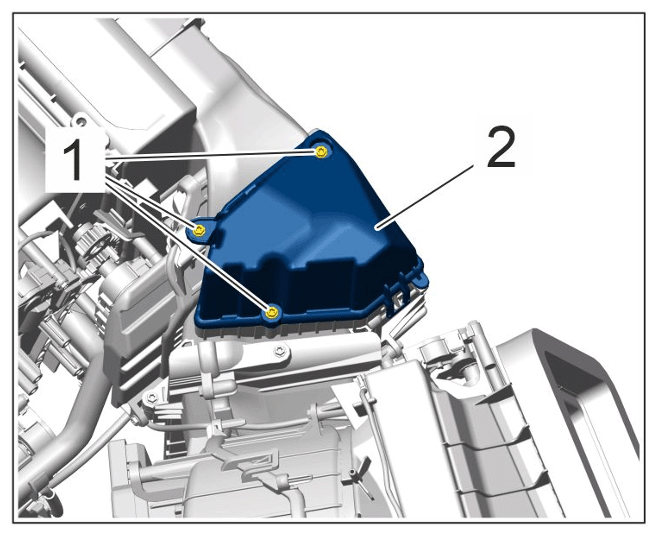

Screw securing sound box to heating/fresh-air unit	Item 1	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Sound box

Location	Description	Type	Basic value	Tolerance

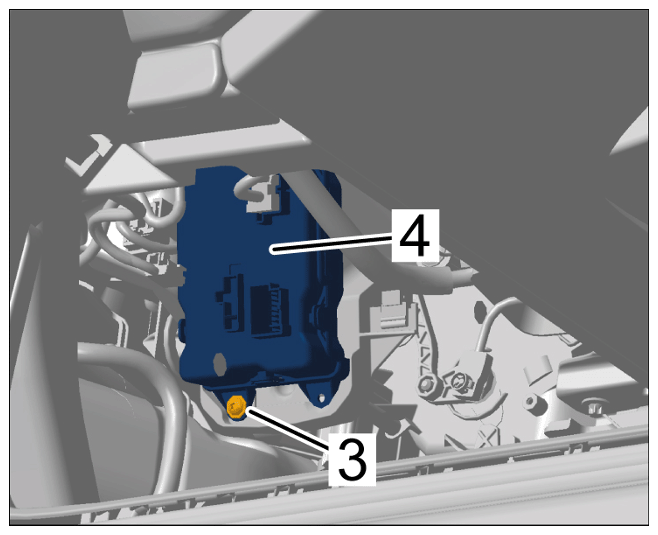

Screw securing air-conditioning control unit holder to heating/fresh-air unit	Item 3	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Unscrewing screw

Location	Description	Type	Basic value	Tolerance

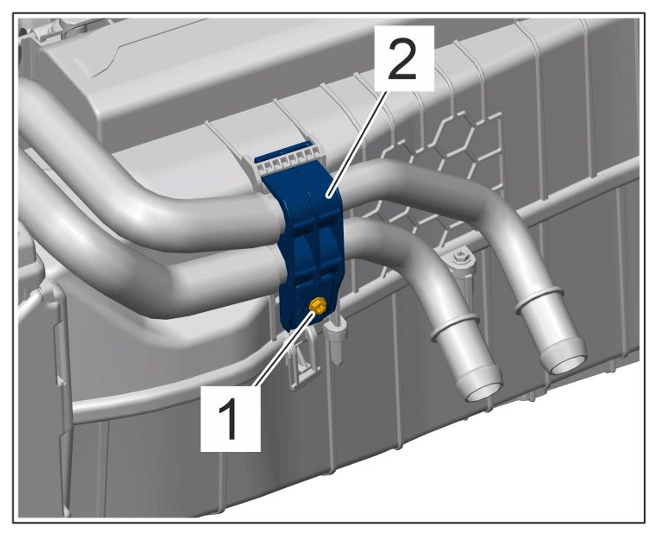

Screw securing holder for coolant lines to heating/fresh-air unit	Item 1	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bracket

Location	Description	Type	Basic value	Tolerance

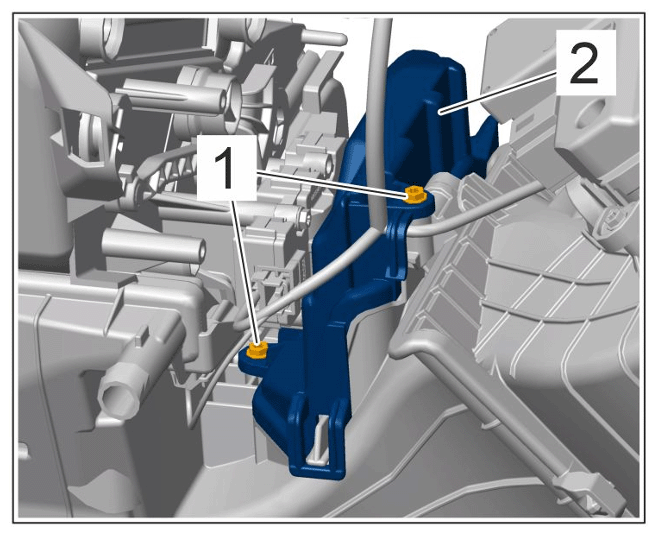

Screw securing cover on heating/fresh-air unit	Item 1	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cover

Location	Description	Type	Basic value	Tolerance

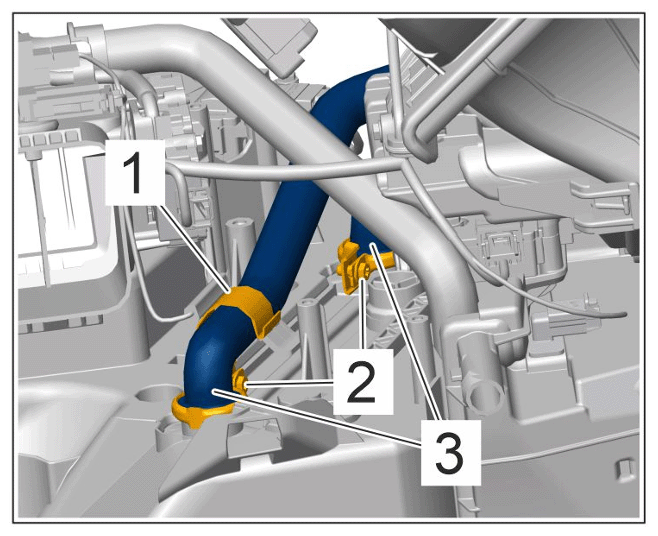

Clamp for coolant line	Item 2	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Air-conditioning lines
