Technical Values - Air Conditioning: Condenser
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Screw securing refrigerant line to condenser | Item 2 | Tightening torque | 12 Nm (8.85 ftlb.) | |
|

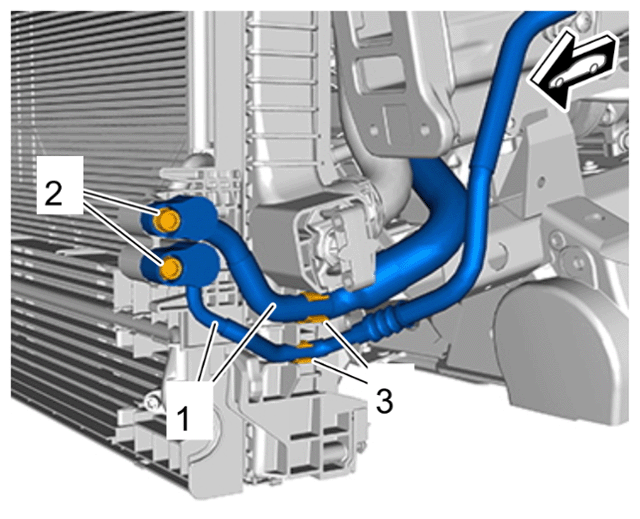

Refrigerant lines on condenser |
||||
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Screw securing condenser retaining frame to radiator | Tightening torque | 5 Nm (3.7 ftlb.) |
