Air-Conditioning Compressor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Screw securing air-conditioning compressor to engine	-1- and -2-	Tightening torque	20 Nm (15 ftlb.)

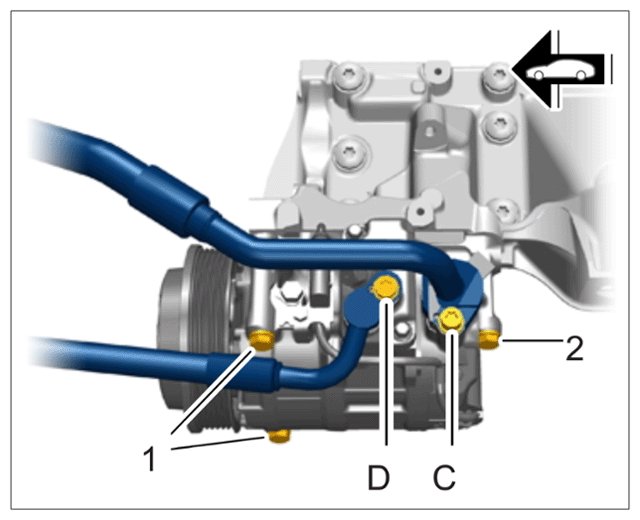

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Refrigerant line to air-conditioning compressor
Screw securing refrigerant line to air-conditioning compressor	-C- and -D-	Tightening torque	20 Nm (15 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tightening torques
Oil filler screw to air-conditioning compressor B		Tightening torque	15 Nm (11 ftlb.)

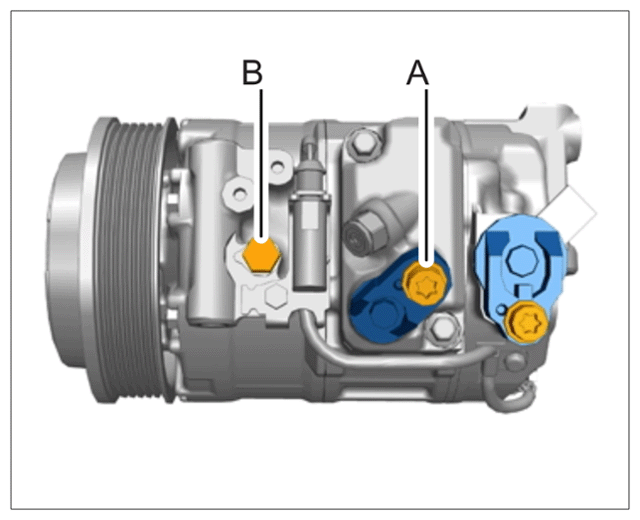

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Cap and oil filler screw
Screw securing tensioning roller to holder	Drive belt on air-conditioning compressor	Tightening torque	25 Nm (19 ftlb.)
