Servo Motor To Air Distribution

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value	Tolerance
Screw securing servo motor to air distributor	Item 2	Tightening torque	1.5 Nm (1.1 ftlb.)

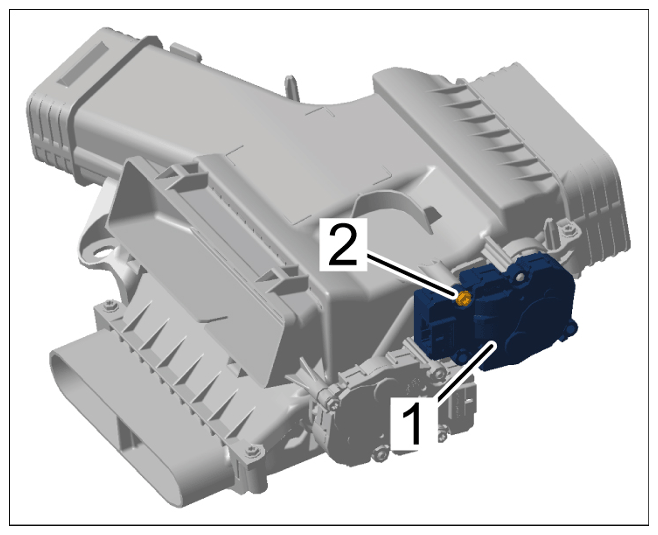

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Servo motor for rear air distribution

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

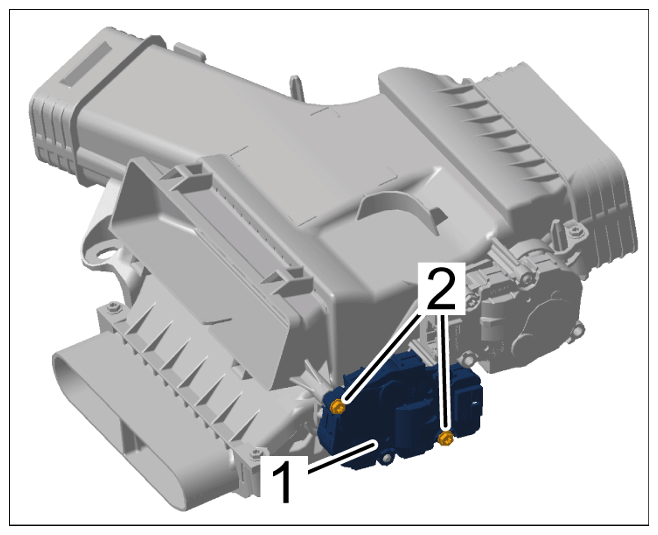

Servo motor for rear air flow
