Installing Striker Pin

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position lock peg (striker pin) -1-  .
    G15863119Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lock peg (striker pin)

  2. Tighten fastening screws hand-tight.

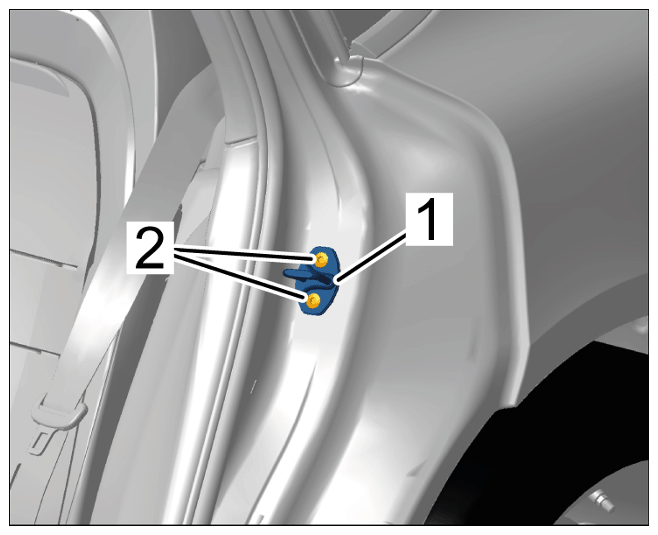

    G15863120Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lock peg (striker pin)

  3. Carefully close the door and check that the lock peg is positioned correctly with respect to the lock.
  4. Adjust the lock peg if necessary.
  5. Screw in and tighten fastening screws to > Tightening torque 25 Nm (19 ftlb.)  .
