Adjusting Lock Peg (Striker Pin)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjusting element for striker pin

The striker pin can be adjusted by changing the plasticity of the adjusting element in the B-pillar.
The setting is retained when the striker pin is removed.

Loosen fastening screws -2- .
Move striker pin outwards.

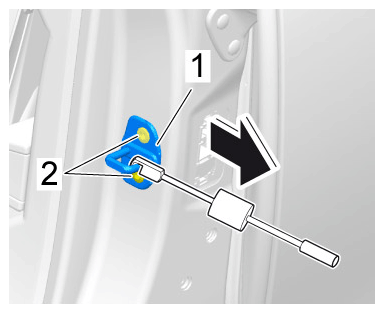

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjusting lock peg (striker pin)
1. 2.1 Move lock peg -1- outwards using > VAS 6965 - slide hammer kit .
Adjust the lock peg back/down/up.

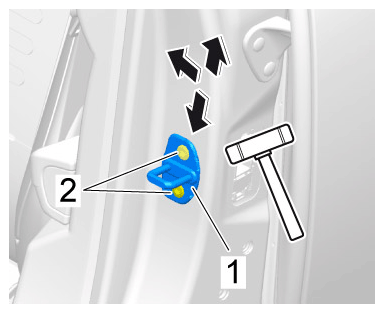

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjusting lock peg (striker pin)
1. 3.1 Move the lock peg -1- to the required position using a plastic hammer.
Carefully close the door and check that the lock peg is positioned correctly with respect to the lock.
Screw in and tighten fastening screws -2- to > Tightening torque 25 Nm (19 ftlb.) .
