Technical Values

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
Location Des... Type Basic val... Toleranc... Toleranc...

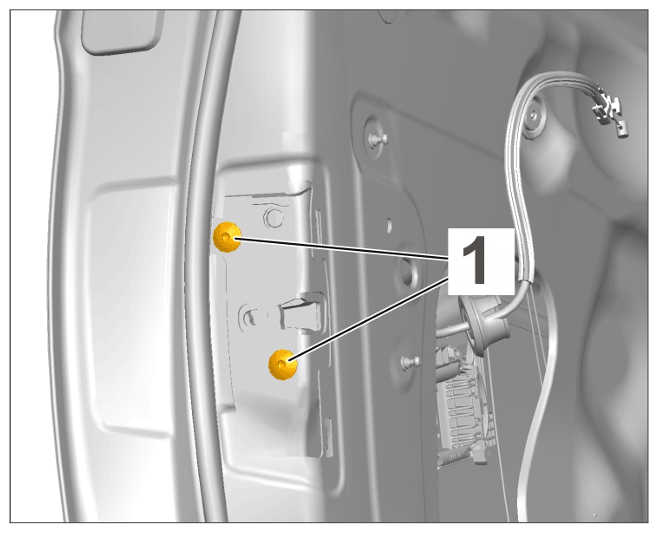

Door lock to bodyshell Item 1 Tightening torque 20 Nm (15 ftlb.)
G15863100Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

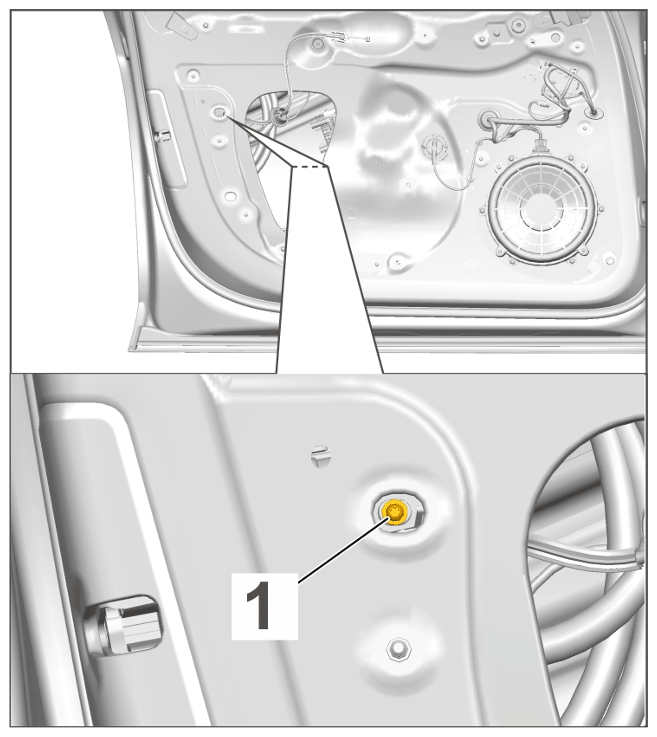

Door lock to guide rail Item 1 Tightening torque 2.5 Nm (1.8 ftlb.)
G15863101Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw
