Technical Values

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...
Fastening screw securing door hinge to door	Item 1	Tightening torque	55 Nm (41 ftlb.)

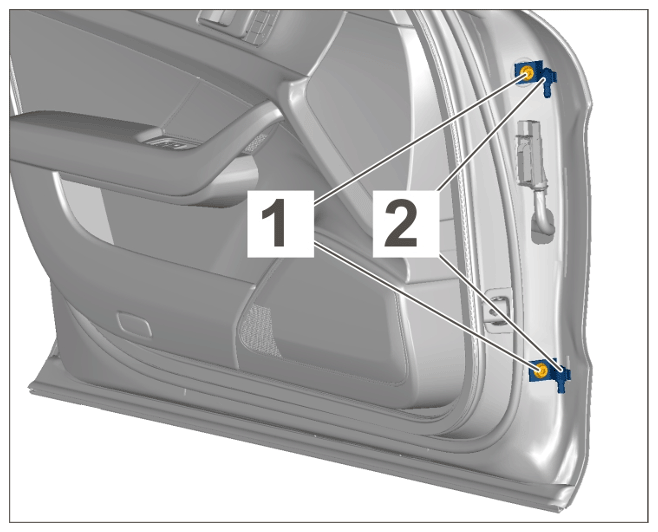

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge (on door side)
Fastening nut securing door hinge to body	Item 1	Tightening torque	60 Nm (44 ftlb.)

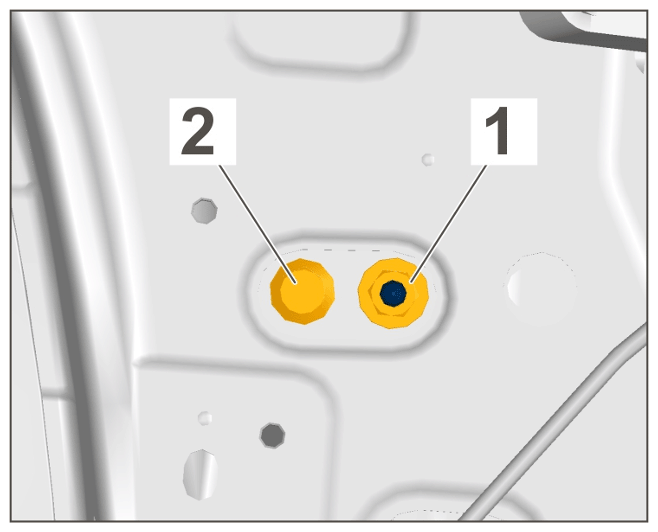

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge (on body side)
Fastening screw securing door hinge to body	Item 2	Tightening torque	60 Nm (44 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge (on body side)
