Removing Inner Door Release

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

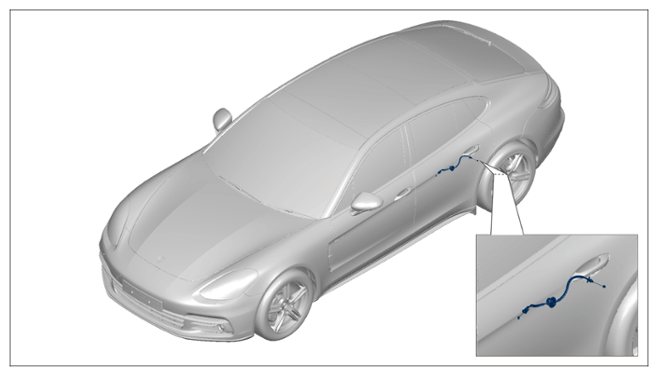

Installation position of inner door release

Lever off trim using a plastic wedge.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

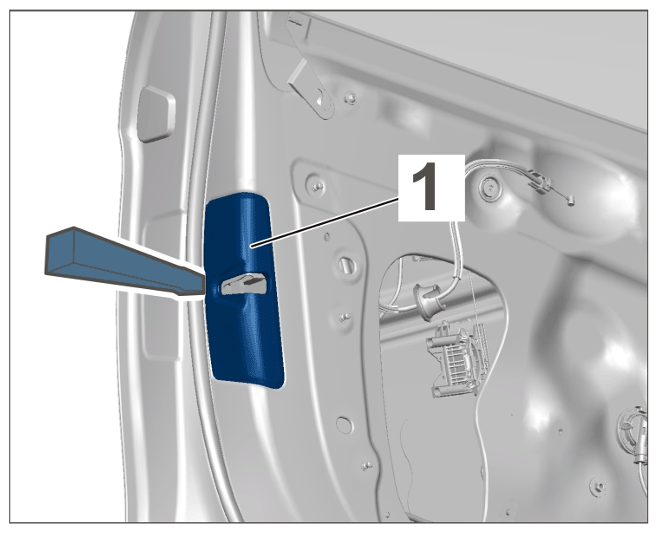

Levering off trim

Loosen door lock.

2.1 Unclip trim -1- using a plastic wedge.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

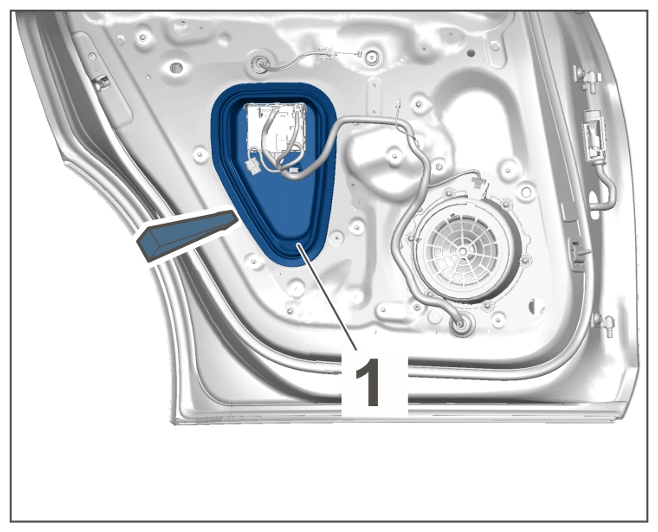

Cover

Information

New fastening screws must be used following removal.

2.2 Unscrew fastening screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

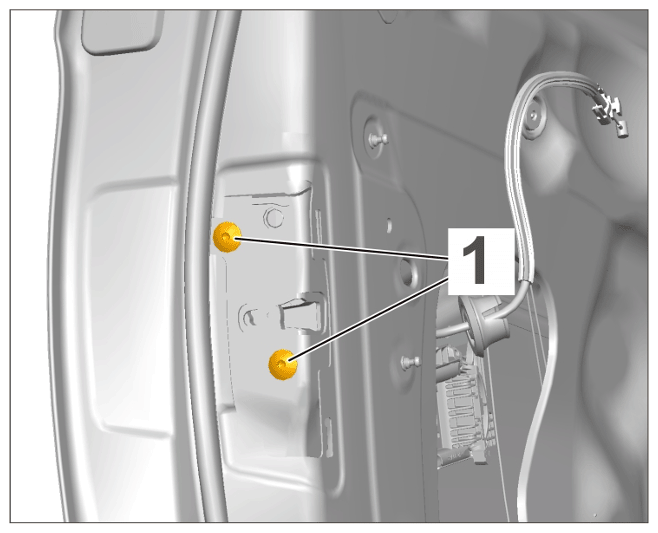

Fastening screws

Detach inner door release -1- from door lock.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

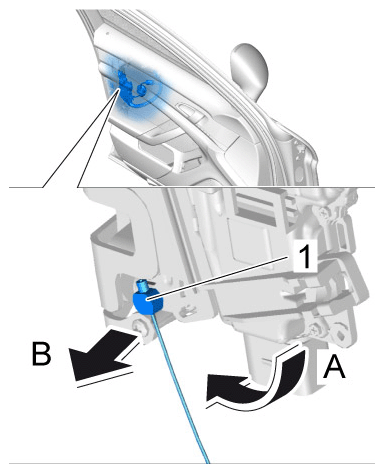

Detaching inner door release
1. 3.1 Turn bowden cable clip 90° -A- and remove it from the bracket -B- .
Disengage actuator for inner door release.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

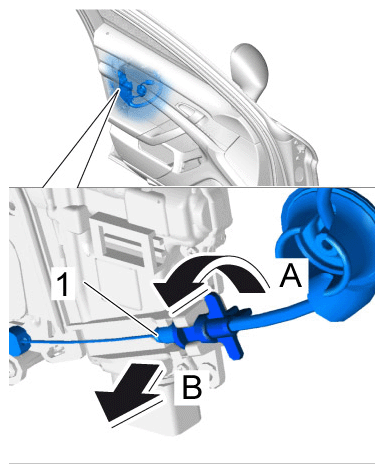

Disengaging inner door release

4.1 Turn inner door release -A- until the driver is released.
4.2 Remove inner door release driver -1- from the mounting -B- .
