Installing Striker Pin

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Install lock peg -1- .
1. 1.1 Fit lock peg -1- and align according to the markings.
2. 1.2 Screw in screws -2- .
3. 1.3 Carefully close the door and check that the lock peg -1- is positioned correctly with respect to the door lock.
4. 1.4 Re-align lock peg -1- if necessary.
5. 1.5 Tighten screws -2- > Tightening torque 25 Nm (19 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

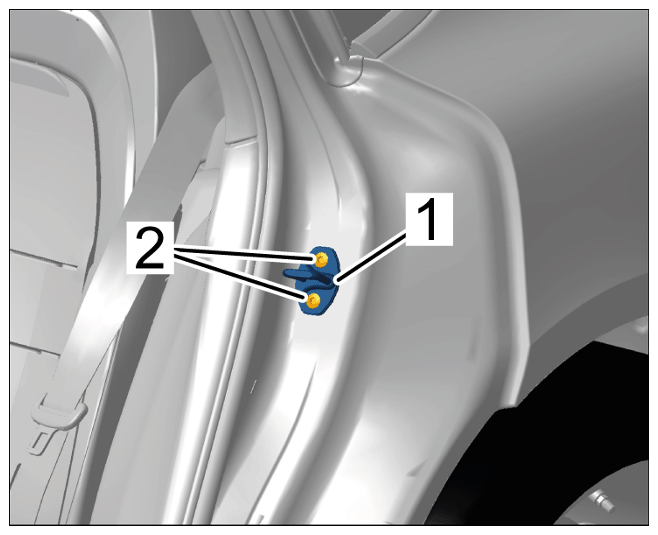

Installing striker pin
Remove markings you made previously using isopropanol.
Check gap dimensions and adjust the lock peg if necessary > Adjusting lock peg
