Technical Values

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...

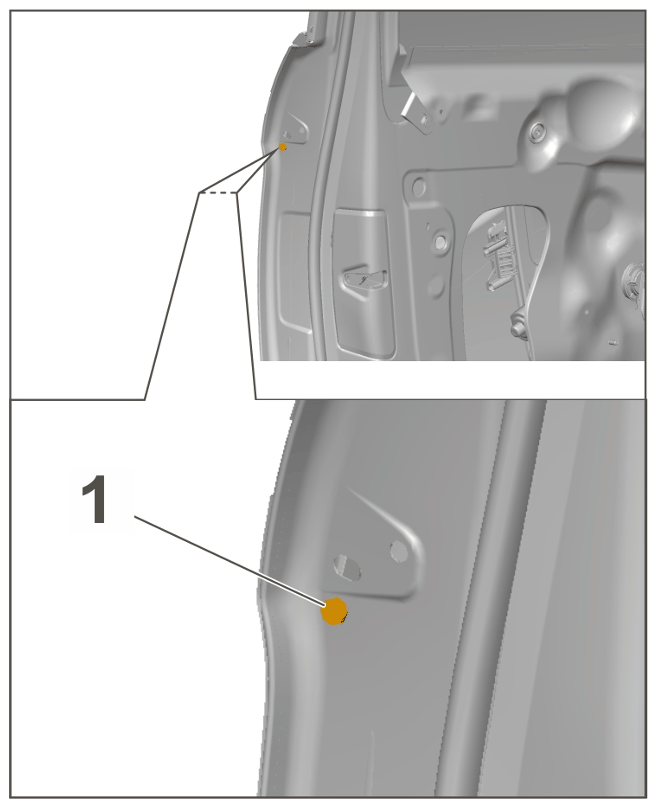

Fastening screw for door handle	Item 1	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw

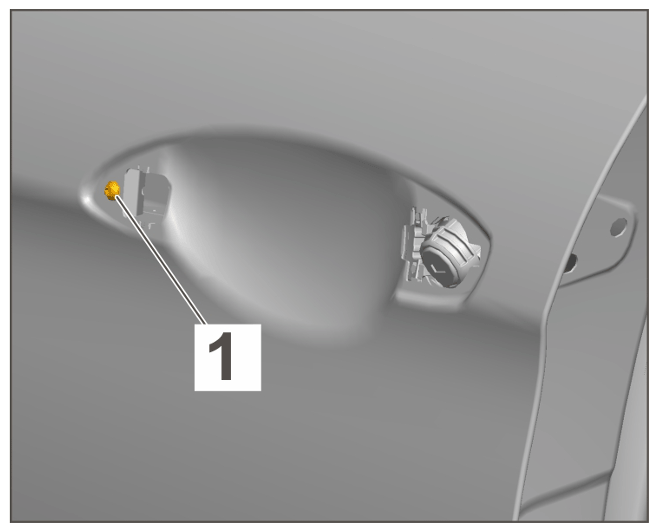

Adjusting screw for door handle in service position	Item 1	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door handle in service position

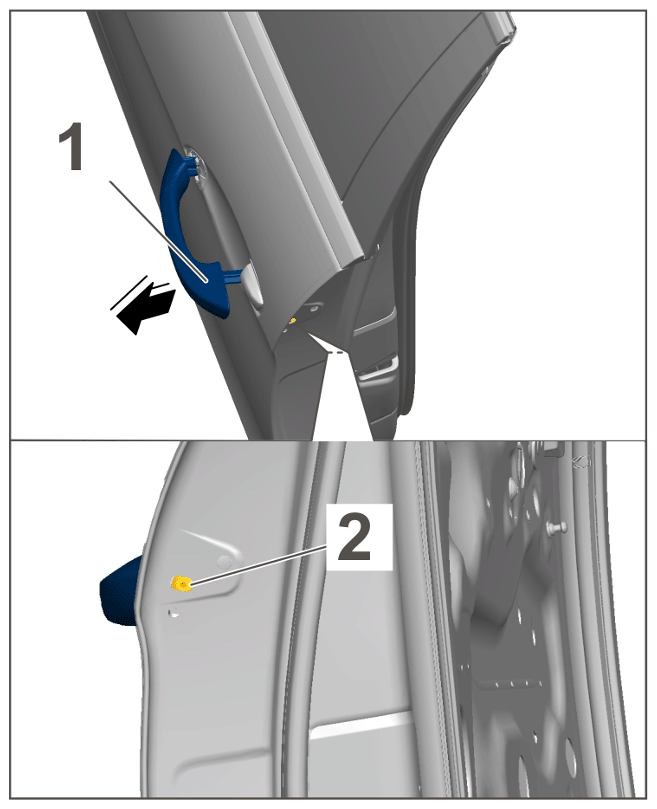

Fastening screw for door handle in service position	Item 1	Tightening torque	2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screw
