Removing Brake Pedal

WARNING: This page is about a different car, the 2020 Porsche Panamera, 2019 Porsche Panamera, 2018 Porsche Panamera, and 2017 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

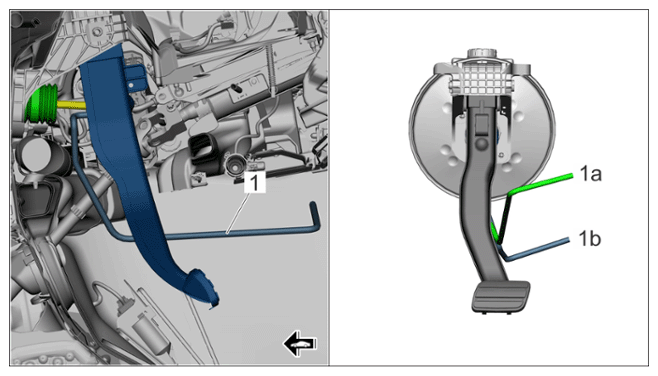

View of tool -1- in the vehicle (cut-out)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tool on brake booster push rod (shown as an example)

1a	Place tool on push rod (approximate position)
1b	Tool in unlocking position (approximate position)

Loosen the push rod on the brake booster of the brake pedal.

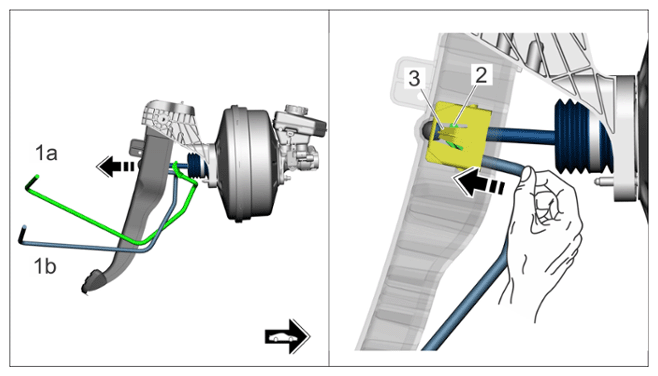

1.1 Place > 9897 - unlocking tool on the push rod (upstream of bellows) of the brake booster from below -1a- .

The push rod must be inserted in the fork on the tool.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Positioning tool on push rod

1.2 Push the fork of > 9897 - unlocking tool-2- as far as possible into lock -3- from the rear (guide along the push rod) -Arrow- and support with your hand (important!) > Positioning tool on push rod.

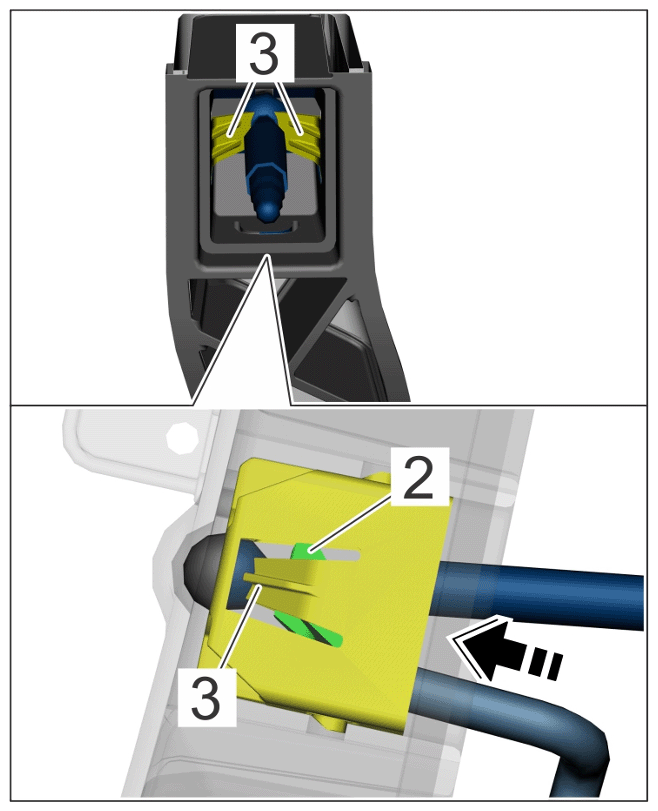

1.3 The pressure -Arrow- causes the fork -2- on the > 9897 - unlocking tool to spread the retaining lugs -3- on the lock apart.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tool on push rod lock

1.4 Pull the lever on the tool or the brake pedal towards the passenger compartment while continuing to support the tool on the lock.

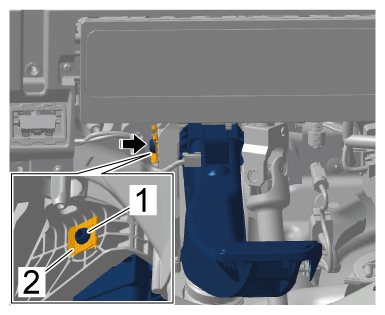

Remove pedal shaft -1- .
1. 2.1 Remove retaining clip -2- on the pedal shaft -1- .
2. 2.2 Pull out pedal shaft -1- in direction of -Arrow- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pedal shaft
Remove the brake pedal by pulling it downwards.
