Technical Values

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...
Screw securing holder for rear angle sensor for headlight beam adjustment to trailing arm	Item 1/always replace screws following removal!	Initial tightening	3 Nm (2 ftlb.)
Screw securing holder for rear angle sensor for headlight beam adjustment to trailing arm	Item 1/always replace screws following removal!	Final tightening	+ 45°

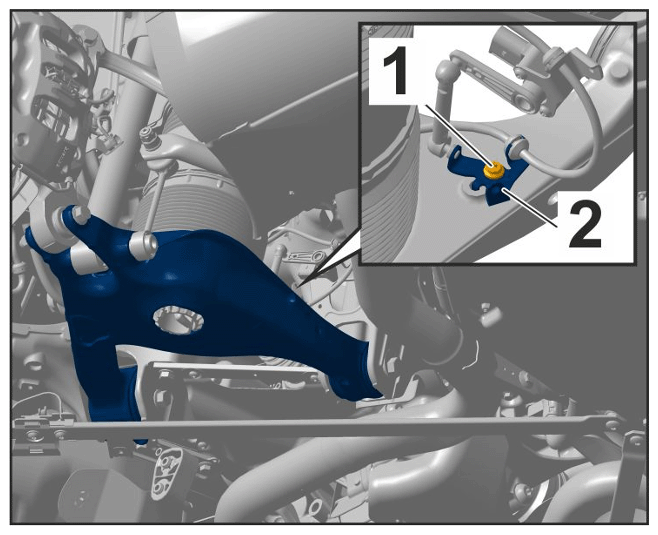

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing holder for rear angle sensor for headlight beam adjustment to trailing arm
Screw securing holder for rear angle sensor for headlight beam adjustment to rear axle housing	Item 4/always replace screws following removal!	Initial tightening	3 Nm (2 ftlb.)
Screw securing holder for rear angle sensor for headlight beam adjustment to rear axle housing	Item 4/always replace screws following removal!	Final tightening	+ 45°

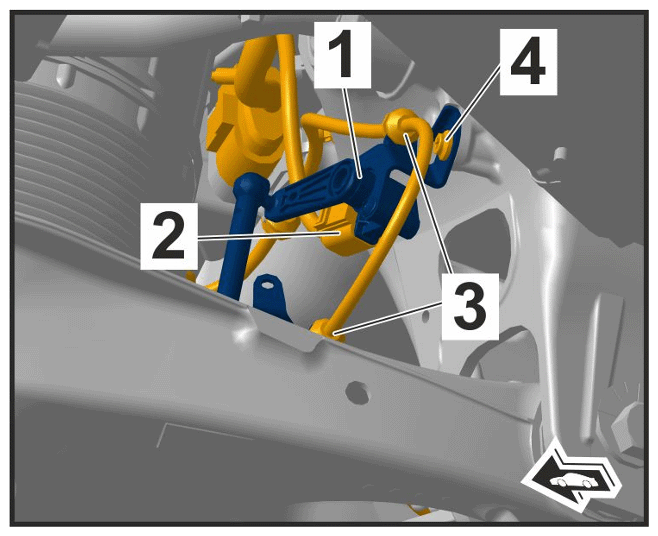

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing holder for rear angle sensor for headlight beam adjustment to rear axle housing
