Technical Values

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...
Nut securing front angle sensor for headlight beam adjustment to front-axle carrier	Item 1	Tightening torque	8 Nm (6 ftlb.)

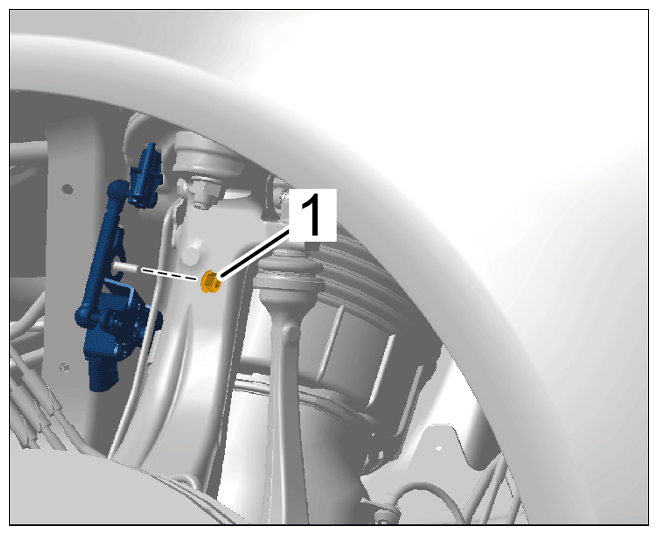

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut securing front angle sensor for headlight beam adjustment to front-axle carrier
Screw front HBA angle sensor to trailing arm above	Item 3	Initial tightening	3 Nm (2 ftlb.)

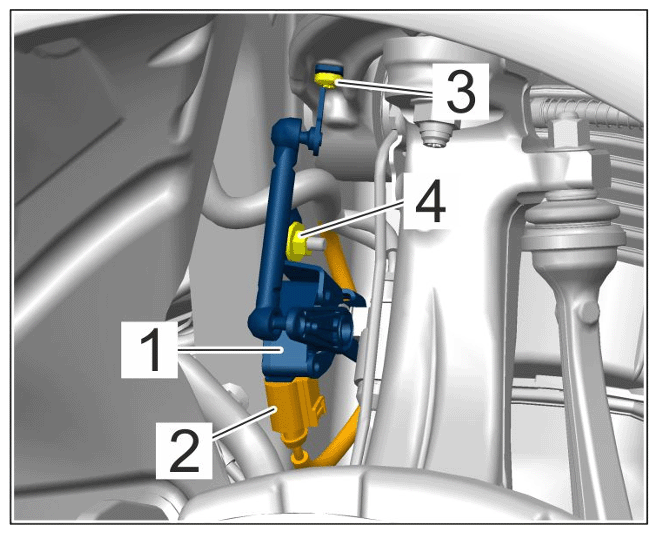

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for front angle sensor for headlight beam adjustment
Screw front HBA angle sensor to trailing arm above	Item 3	Final tightening	+ 45°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for front angle sensor for headlight beam adjustment
