Removing Auxiliary Headlight

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

The number of screws, clips, plug connections, holders and trim panels can vary depending on equipment.

  1. Release and unplug electric plug connection -2-  .

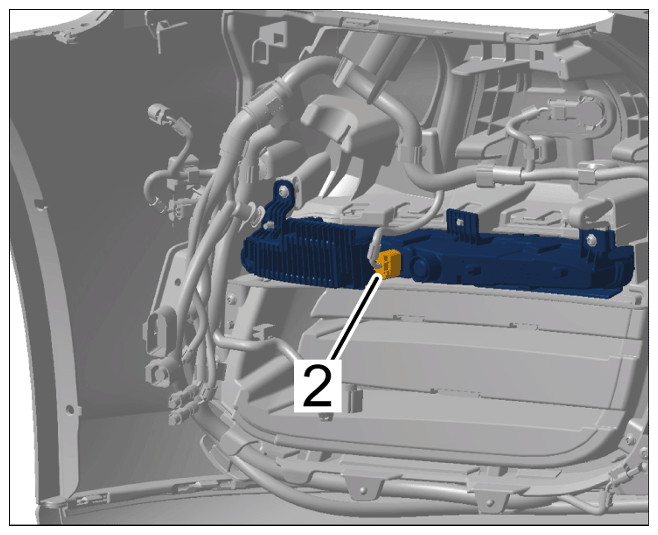

    G15875983Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and pulling off electric plug connection

    Information

    Only for Panamera TURBO

  2. Remove decorative element on auxiliary headlight glass.
  3. Unscrew screws -3-  and remove auxiliary headlight -1-  .

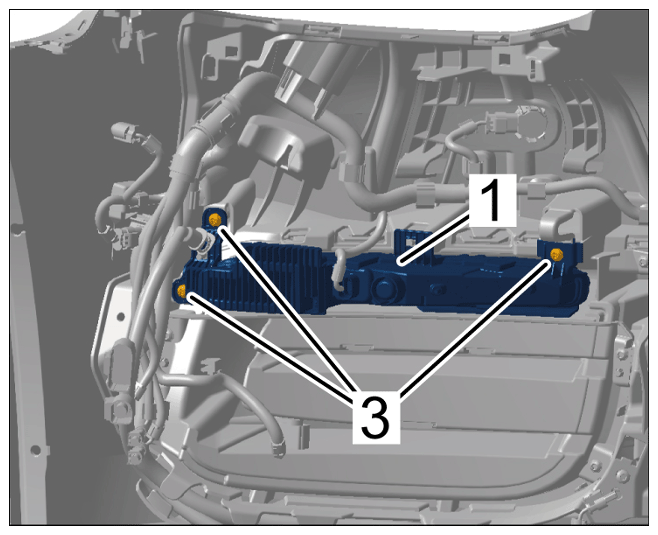

    G15875984Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing auxiliary headlight
