Removing Auxiliary Brake Light
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
- Release and disconnect electric plug connection -2-
(-arrow-
) and unclip wire harness on auxiliary brake light -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Releasing and pulling off electric plug connection
- Screw off nuts -3-
and remove auxiliary brake light -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

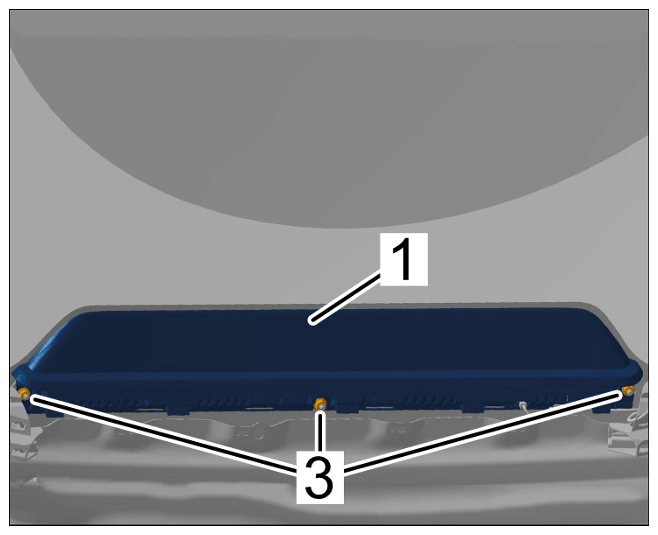

Removing auxiliary brake light
