Removing Light Bulb Control Unit

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

Always comply with the regulations for handling ESD-sensitive components!

Always wear approved work clothes and shoes when carrying out assembly work.
Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
Do not touch electric pins and plug contacts.

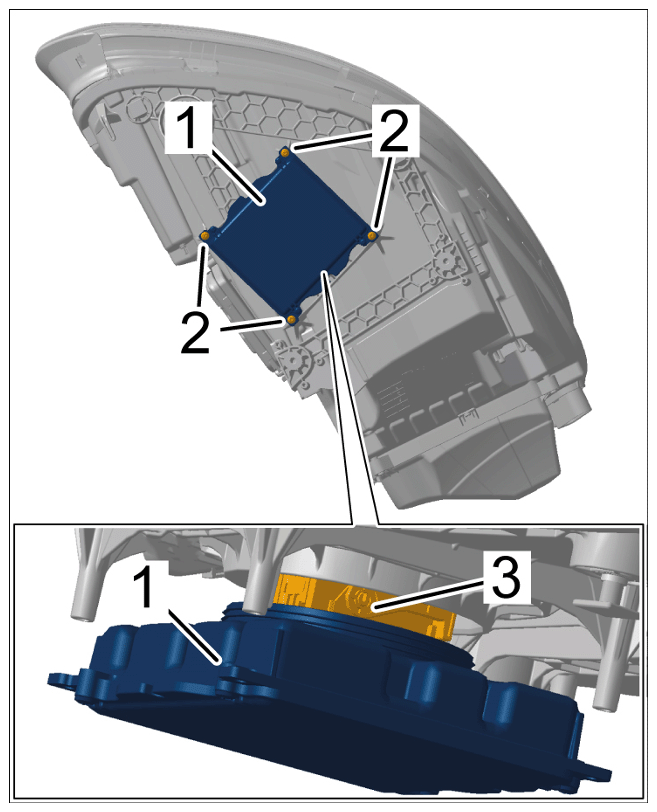

Unscrew screws -2- and loosen LED module -1- until the electric plug connection -3- is accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening LED module
Release and disconnect electric plug connection -3- and remove LED module -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing LED module
