Removing Steering Column Switch

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

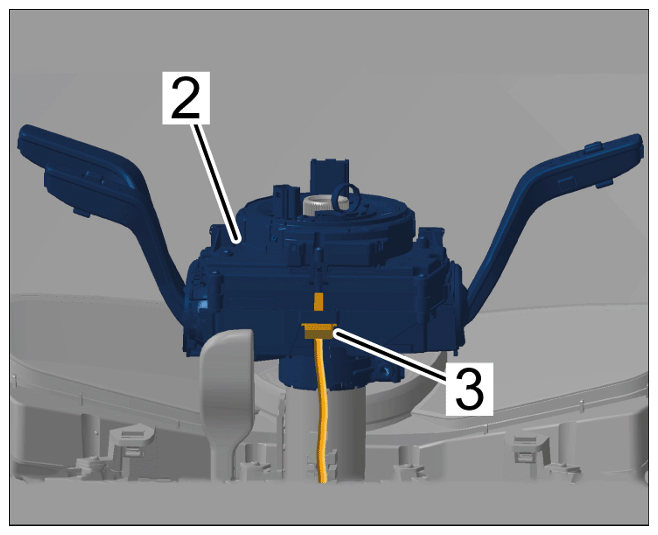

Release and disconnect electric plug connection -3- on the steering-column switch -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connection

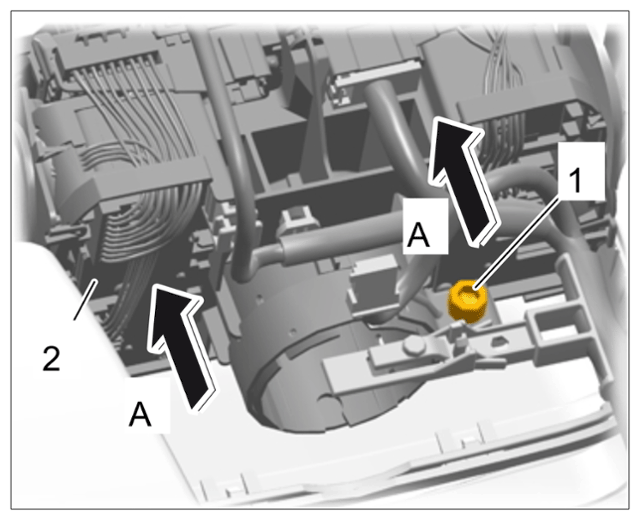

Loosen screw -1- and pull steering-column switch -2- with control unit for steering wheel electronics off the steering column -arrows A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening clamping screw
