Removing Control Unit For Front-End Electronics
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
→ Switch off electrical loads before disconnecting or removing them.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Always wear approved work clothes and shoes when carrying out assembly work.
- Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
- Do not touch electric pins and plug contacts.

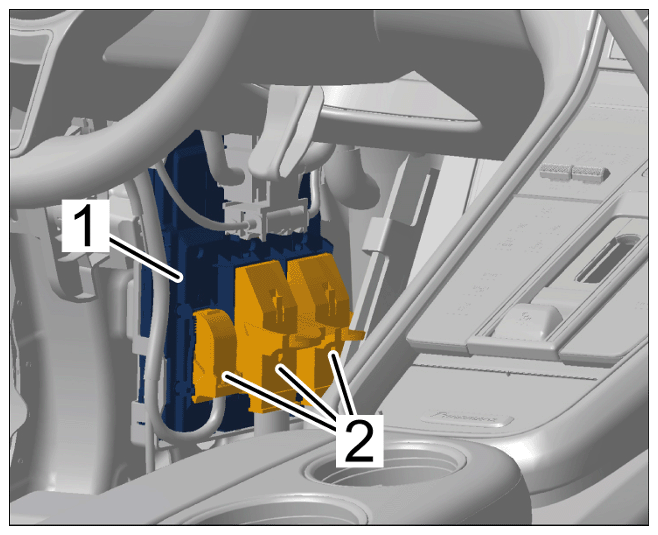

- Release electric plug connections -2-
and disconnect them from the front-end electronics control unit -1-
.
Disconnecting electric plug connections

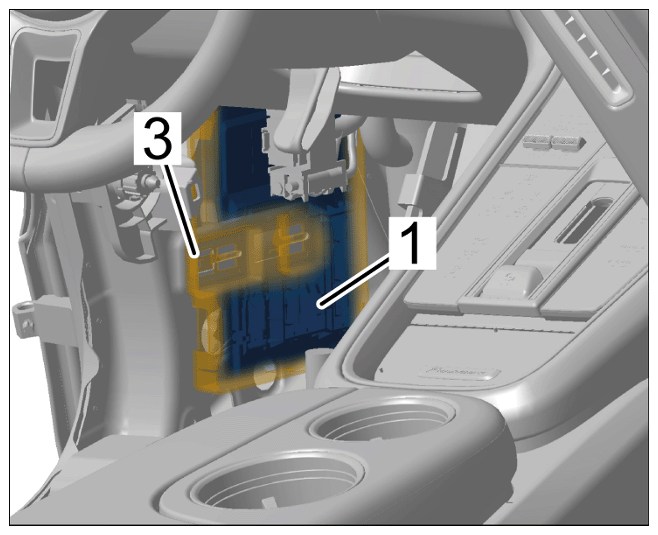

- Remove front-end electronics control unit -1-
with holder -3-
by pulling it to the rear and out of the A-pillar.
Pulling off front-end electronics control unit

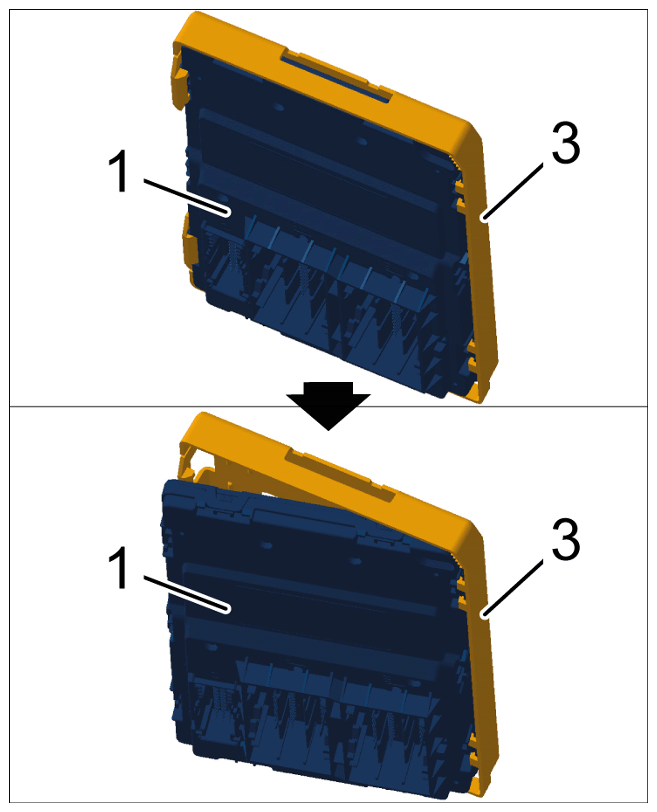

- Unclip front-end electronics control unit -1- from the holder -3- and remove it.
Unclipping front-end electronics control unit
